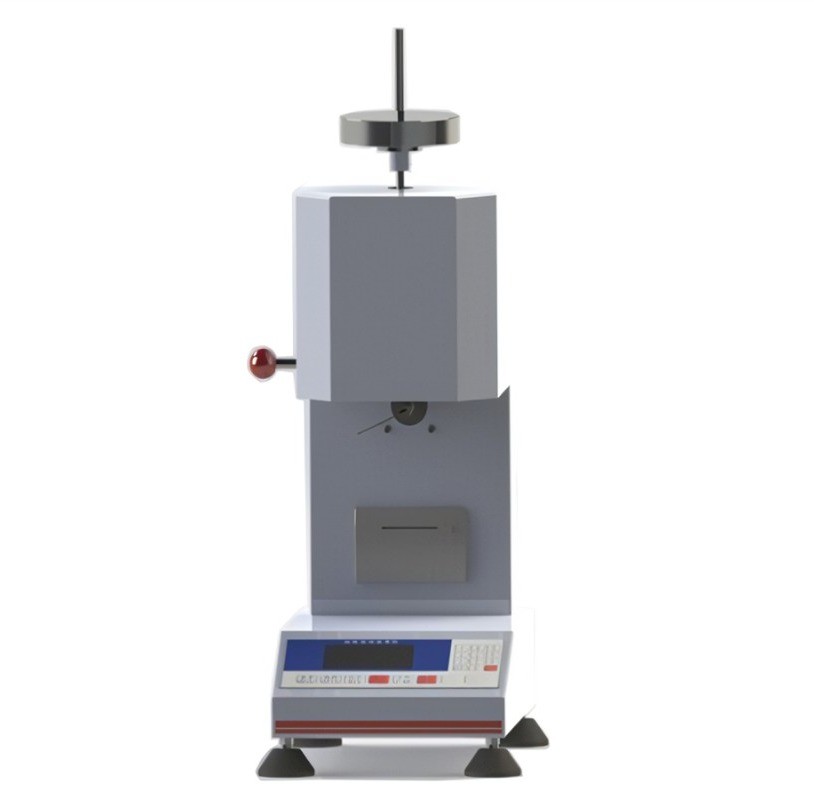

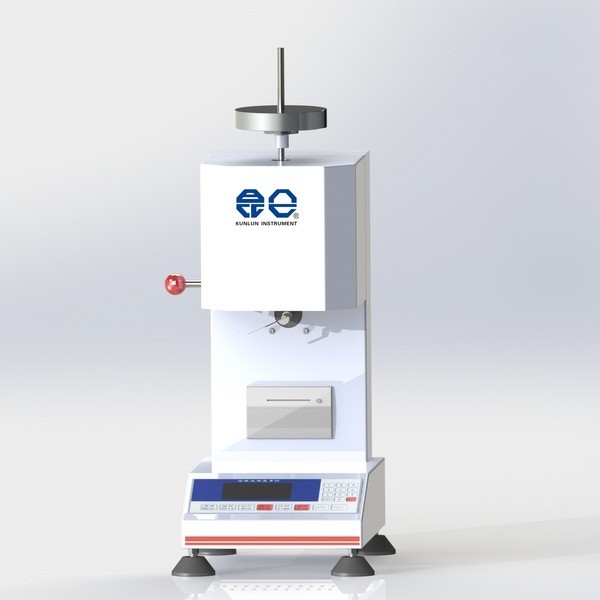

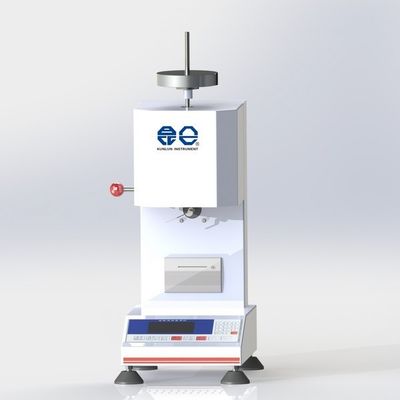

Melt Flow Rate Meter Dual-sensor Configuration Accurate Temperature Control

Advantages that distinguish it from other domestic manufacturers of melt flow rate meter:

1. The heating cylinder is made of 304 stainless steel or alloy, because the melt flow rate meter works at high temperature for a long time (up to 400~500 degrees), the metal material is easy to oxidize and rust at high temperature

3. Dual-sensor configuration, accurate temperature control, better temperature gradient and longer life

4. According to the requirements of the national standard, a four-minute countdown function is added after feeding

5. RS232 interface, can be directly connected to the computer to output data (optional)

6. Stainless steel weights (optional)

6. After booting, the last test conditions can be directly displayed to avoid every user

Re-set test parameters to reduce operator workload

7. The maximum temperature can reach 450~500 degrees (optional, special instructions are required when ordering)

8. It can test strong corrosive plastics for a long time without damaging the accuracy of the instrument, such as

All fluoroplastics (due to special materials, please specify when ordering)

and other full range of fluoroplastics (due to the material

Special, please specify when ordering), only our company has this technology in China

9. Meet the standards: ISO 1133, ASTM D1238, GB/T3682

1. Product model:

2. Product Description:

This melt flow rate meter is an improved model, which has added many functions, and has greatly improved the instrument configuration, instrument service life, operation convenience, and test accuracy, and has incomparable advantages and cost performance of domestic general melt flow rate meters.

3. Meet the standards:

ISO 1133,ASTM D1238,GB/T3682

4. Product use:

It is not only suitable for engineering plastics such as polycarbonate, polyarylsulfone, fluoroplastics, nylons and other engineering plastics with high melting temperature, but also suitable for plastic testing with low melting temperature such as polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyoxymethylene (POM), polycarbonate (PC) resin, etc., which are widely used in plastic production, plastic products, petrochemical and other industries and related universities, scientific research units and commodity inspection departments.

The melt flow rate meter is suitable for the determination of the melt mass flow rate of thermoplastics specified in the national standard of GB/T3682-2000 Determination of Melt Mass Flow Rate and Melt Volume Flow Rate of Thermoplastics, which is equivalent to the provisions of ISO 1133:1997 and can meet the ASTM D1238 test standard.

The melt flow rate meter is a desktop structure, reasonable design, stable and reliable performance, beautiful appearance, easy to operate, using high-performance, high-precision control instrument, with the characteristics of high sampling accuracy and fast control rate, and using fuzzy PID algorithm for constant temperature control.

5. Product features:

1. The heating speed is fast, and the overshoot is very small 2. The constant temperature accuracy is high

3. After the filler, it can quickly restore the constant temperature state 4. It is convenient to calibrate and correct the test parameters

5. Manual and automatic cutting test methods can be used 6. Chinese LCD display

7. Equipped with a printer, the test results will be automatically printed

6. Main technical parameters

1. Extrusion and discharge part

Outlet diameter: Φ2.095±0.005 mm, outlet length: 8.000±0.025 mm

Barrel diameter: Φ9.550±0.025 mm, barrel length: 152± 0.1 mm

Piston head diameter: 9.475±0.015mm, piston head length: 6.350±0.100mm

2. Standard test load (a total of 8 levels of full set of weights)

3. Temperature range: conventional room temperature - 400°C (500°C optional)

4. Constant temperature accuracy: ±0.5°C 5. Display resolution: 0.1°C

6. Cutting method: manual or automatic cutting is optional 7. Temperature recovery time: less than 4 minutes

8. Printing: micro printer automatic printout 9. Power supply voltage: AC220V±10% 50HZ

7. Accessories

Serial number name  unit   number   remarks

   1. Weight        set  1 total of  8 pieces (1# within the 1st load)

0.325kg,1.2kg,2.16kg,3.8kg,5.0kg,10.0kg,12.5,21.6kg

   2. Weight pallet  piece*1   is within the load level 1

   3, charging hopper  piece*1

4. Die cleaning rod*1

   5, charging rod*1

 6. Barrel cleaning rod *1    assembly

   7. Piston rod*1   (within the first load)

   8. Mouth module *1

   9, gauze roll *2

10, printing paper roll *2
