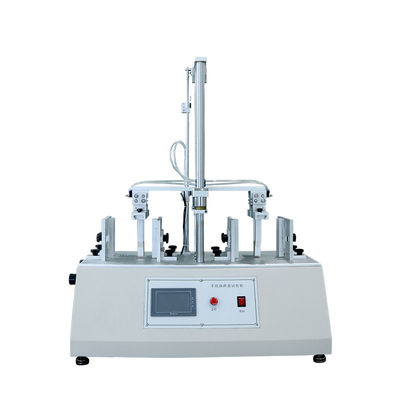

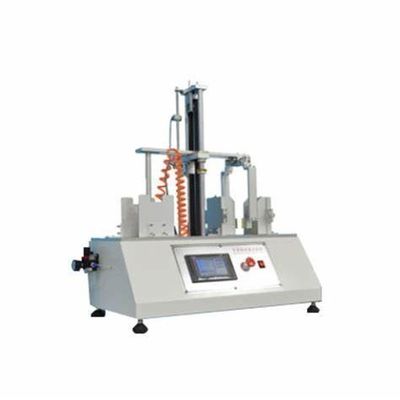

Mobile Phone Micro-drop test Device, Can Be Set to Stop Automatically for the Number of Times

The motor drives the upper fixture (air finger) to descend to clamp the mobile phone, rise, release the gas finger, and the mobile phone becomes a free fall movement, at this time, the double-action cylinder telescopic pushes the mobile phone to the position where the upper fixture can be clamped, and the motor drives the upper fixture (air finger) to descend to clamp the mobile phone, rise, birch the air finger, and the mobile phone becomes a free fall movement, and so on until the set number of times.

Uses:

This machine is suitable for repeated drop tests of small electronic consumer products such as mobile phones, telephone handsets, walkie-talkies, MP3s, CDs, electronic dictionaries, etc

Features: It can be set to stop automatically for the number of times

Drop surface material: aluminum, thickness 12mm. The baffle at the place of the fall is reset.

Prompt function: It can set the fixed value of the number of key strokes, and can automatically stop the test.

This machine uses Japanese Shinano motor as the driving source for lifting and dropping mobile phones, which is durable to use; It can realize repeated drops of mobile phones and other products to detect the impact resistance of products falling from a certain height;

Due to the use of pneumatic components and exclusive control methods, the test speed and consistency are greatly improved; Display control LCD touch control screen + PLC programmable controller for action program control; Count at the same time, and automatically stop the test when the set number of times is reached

Main configuration

1. Touch screen: 1, PLC: 1

2. Rising and descending motor: 1 set (SMC)

3. Vacuum suction cup: 1 (SMC)

4. Vacuum generator: 1 (SMC)

Technical parameters:

1. Drop mobile phones at the same time: 2 units

2. Allowable specimen weight: 2kg(max)

3. Drop height: 60-200mm

4. Test speed range: 6~20 times/min5, PLC controller and touch screen: 1 set

6. Machine size: W550*H750*D650mm

7. Machine weight: about 40kg

8. Air source: ≥0.5Mpa

9. Power supply: AC 220V or specified

Note: Part of the electrical and main body are integrated

Our advantages:

1. Professional technical support.

2. Rich experience in loading a large number of containers in Chinese seaports.

3. Fast shipping by well-known shipping company.

4. Best service with email after shipment.

5. We are a professional testing equipment manufacturer in China, with rich experience and skills, and also with the best quality products.

6. Timely after-sales service

After-sales service :

1. We guarantee that the goods fully comply with the quality, specifications and performance requirements stipulated in the contract;

2. Before delivery, we will conduct accurate and comprehensive testing of the products; Packing according to your requirements, pictures are attached before shipment for your confirmation, delivery is made on schedule, and professional shipping documents are provided;

3. We will provide you with quality service immediately, reply within 48 hours after receiving the quality message, and provide appropriate solutions within 3 working days;

4. After acceptance, our engineers will provide professional and technical services free of charge, such as video guidance and teaching, and on-site guidance and teaching if necessary;

5. We provide a 12-month warranty period, and in the event of quality problems during the product warranty period (not caused by human factors), we guarantee to provide free repair, maintenance and replacement of damaged and defective parts services;
