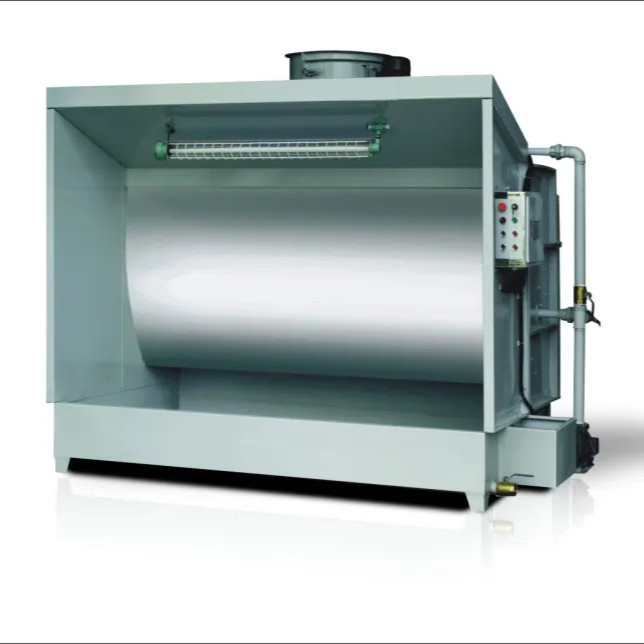

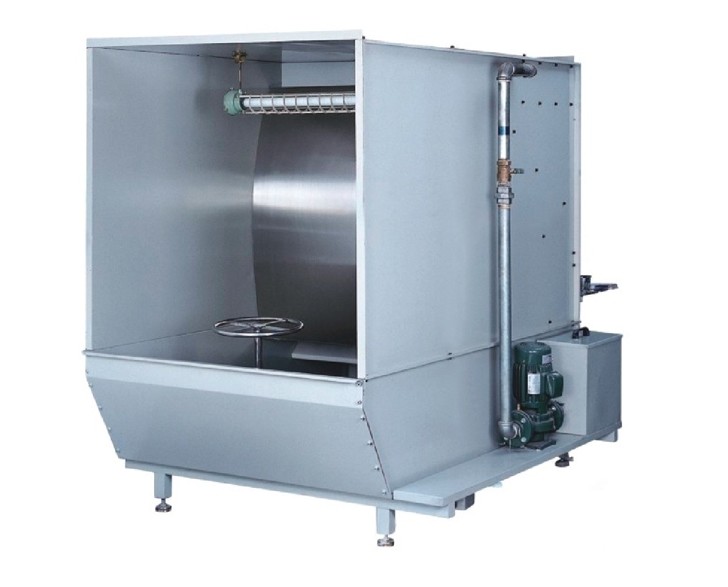

Water curtain cabinet
Purpose and working principle
Environmentally-friendly water curtain cabinet (painting table) is mainly used for painting assembly line workshops in all walks of life as environmental protection equipment for painting waste gas treatment. Its working principle is that the self-priming pump circulates and pumps water to the water curtain plate to flow down evenly, and the exhaust gas (lacquer) sprayed by the spray gun is hit by the water on the water curtain board to the water discharge below. In addition, a small part of the exhaust gas (lacquer) is discharged from the outside of the workshop by the fan above through the exhaust duct. So that there is no exhaust gas (lacquer) in the workshop, to give everyone a good working environment. The characteristic is that the remaining paint powder can be directly hit in the pool or water curtain during painting, and the odor generated during painting and a small amount of unadsorbed paint powder are filtered through the multi-layer water curtain and discharged to the outside of the paint spraying room through the exhaust fan, so as to purify the painting working environment and protect human health, and can enhance the finish of the painted workpiece
Equipment parameters:
Type Single-sided water curtain type
Internal dimensions of the device W1500XD1200XH1800mm(height including pool)
Equipment dimensions (approx.) W1500XD1400XH2250mm (height excluding fan)
Pool plates The national standard 1.2mm cold-rolled steel plate is hydraulic welded, and the height of the pool is about: 300mm
Side panels The national standard 1.2mm cold-rolled steel plate is hydraulicly formed, and the height of the side plate is about: 2400mm
Roof National standard 1.2mm cold-rolled steel plate hydraulic forming
Water slab board It is made of 201# 1.0mm stainless steel plate hydraulic combination
The distance between the water curtain and the cabinet opening Maximum size: 400mm
Bottom 1.5X50X50 iron square through welding reinforcement.
Chassis mounting M12X100 adjustment cup, adjust the level
Filtered water tank National standard 1.5mm cold-rolled steel plate hydraulic welded 400*300MM equipped with a filter screen
Junctions The connecting plate is connected with the plate by screws
Paint mist trapping type Spray wash
Circulating pipes Iron) Pipe diameter 63MM 2 inches
Fans 1 set of 3P 380V Lixin fan × (Kyushu)
Pump 1 set of 3P 380V 50Hz water pump
Explosion-proof fluorescent lamps 40W ×1 set (double tube)
Control electric box One set (CHINT)
Power supply 3 phase 4 wires
