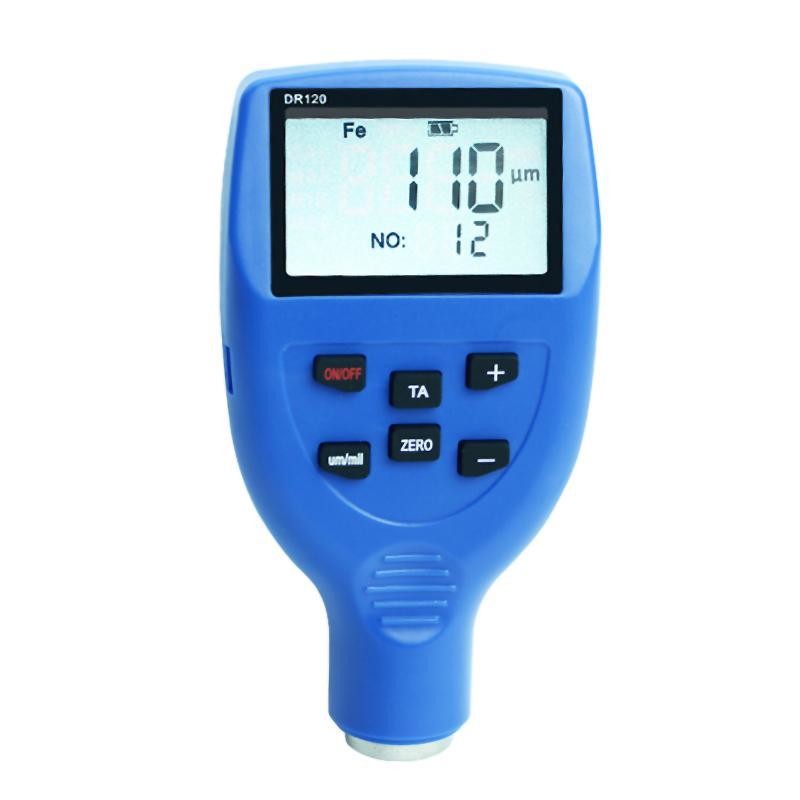

Hand-held Coating Thickness Gauge, a Portable Measuring Instrument

1. Product Name: Hand-held Coating Thickness Gauge

2. Product number

3. Product parameters

1.Introduction:

The hand-held coating thickness gauge is a portable measuring instrument that can measure the coating or coating thickness quickly, without damage and with precision. It can be used in the laboratory or in the engineering field.

2. Scope of application:

This instrument adopts magnetic and eddy current thickness measurement methods, which can non-destructively measure non-magnetic metal substrates (such as copper, aluminum. Zinc. tin, etc.), the thickness of the non-conductive covering layer (such as oxide film, enamel, rubber, paint, plastic, etc.) This instrument has the characteristics of small measurement error, high reliability, good stability, and easy operation.

Hand-held coating thickness gauge: widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields. It is a must-have instrument for material protection

3. Instrument features:

Small design, easy to carry.

Fully intelligent design, easy to operate.

Fast measurement and good repeatability.

Zero-point calibration, two-point calibration.

Single and continuous measurements

LCD digital display

There is a beep prompt during operation

Deletion of a single suspicious data that appears in the measurement

Two probe designs for different testing sites

It has the function of power supply under-voltage indication

A power charger is included, and two rechargeable batteries are included

It has an automatic shutdown function

4. Main technical indicators:

Ambient temperature: 0~40°C

Power supply: 9V*1

Statistical functions (single measurement): average, maximum, minimum, number of measurements

Minimum substrate: 10*10mm

Minimum curvature: convex 5mm; Concave 25mm

Thinnest body: 0.5mm

Dimensions: 125×74×33

Weight: 280G

Measuring range: 0--1000μm (optional)

Measurement accuracy: zero point calibration, +(3%h+1.5) two-point calibration: +(1%-3%)H+1.5

Display accuracy: 0.1

5. Main functions of hand-held coating thickness gauge:

There are two calibration methods: one-point calibration and two-point calibration.

Basic calibration resolution: 0.1 μm (measurement range less than 100 μm)

                1 μm (measuring range > 100 μm)

There are five statistics and 459 data are stored

There are two types of measurement: continuous measurement and single measurement

There are two shutdown methods: manual shutdown and automatic shutdown

Configurable limit: The measured value outside the limit can be automatically alarmed, and a batch of measured values can be analyzed with a histogram;

Delete function: Gross errors and wrong settings can be deleted;

There is a power supply undervoltage indication function

It can work while charging

Error prompt function

6. Basic configuration of hand-held coating thickness gauge:

1 host

1 N1 probe

Calibration standard 1 box 2 batteries

After-sales service :

1. We guarantee that the goods fully comply with the quality, specifications and performance requirements stipulated in the contract;

2. Before delivery, we will conduct accurate and comprehensive testing of the products; Packing according to your requirements, pictures are attached before shipment for your confirmation, delivery is made on schedule, and professional shipping documents are provided;

3. We will provide you with quality service immediately, reply within 48 hours after receiving the quality message, and provide appropriate solutions within 3 working days;

4. After acceptance, our engineers will provide professional and technical services free of charge, such as video guidance and teaching, and on-site guidance and teaching if necessary;

5. We provide a 12-month warranty period, and in the event of quality problems during the product warranty period (not caused by human factors), we guarantee to provide free repair, maintenance and replacement of damaged and defective parts services;

In the event of any technical failure outside the warranty period, we will provide free telephone consultation services, and can also carry out paid repair and maintenance services;

Before delivery, we will conduct precise and comprehensive testing of the product to ensure the good operation of the equipment;
