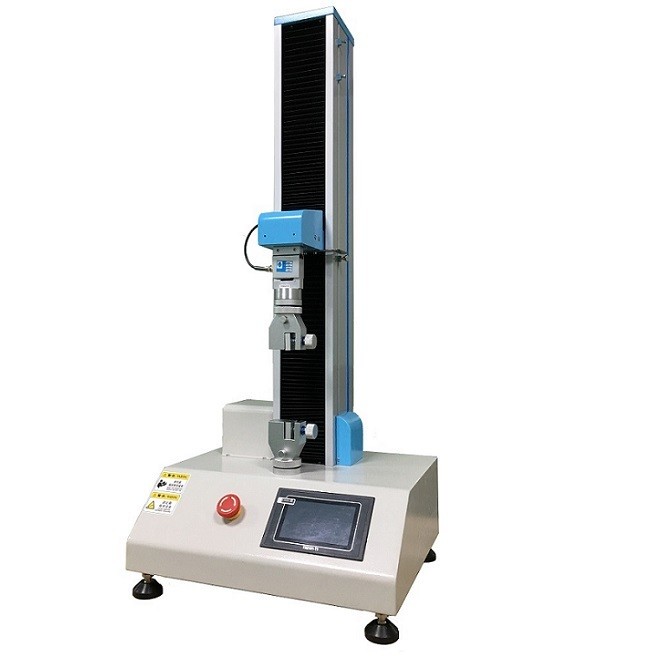

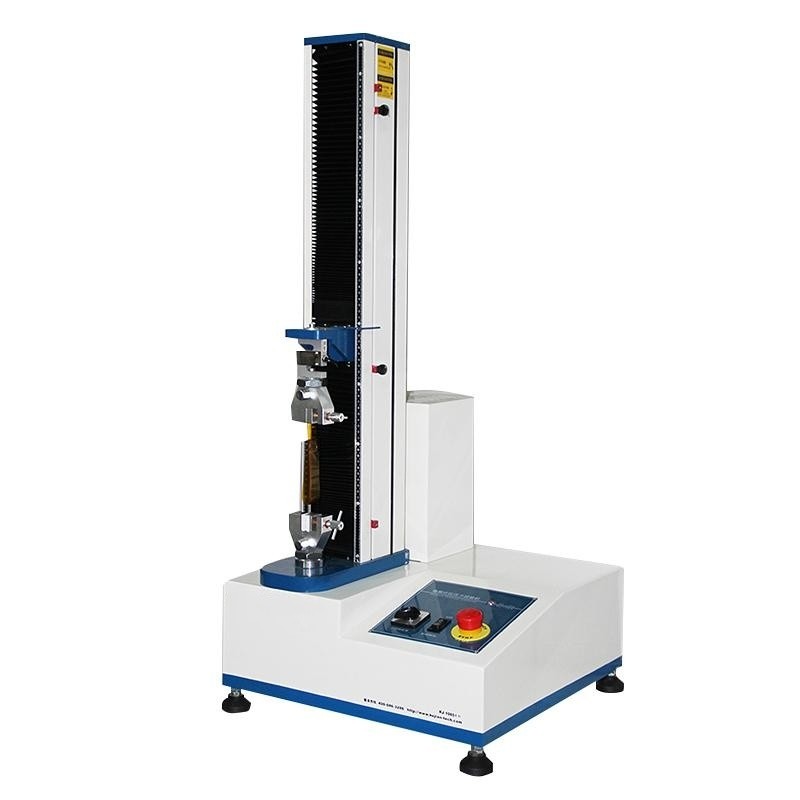

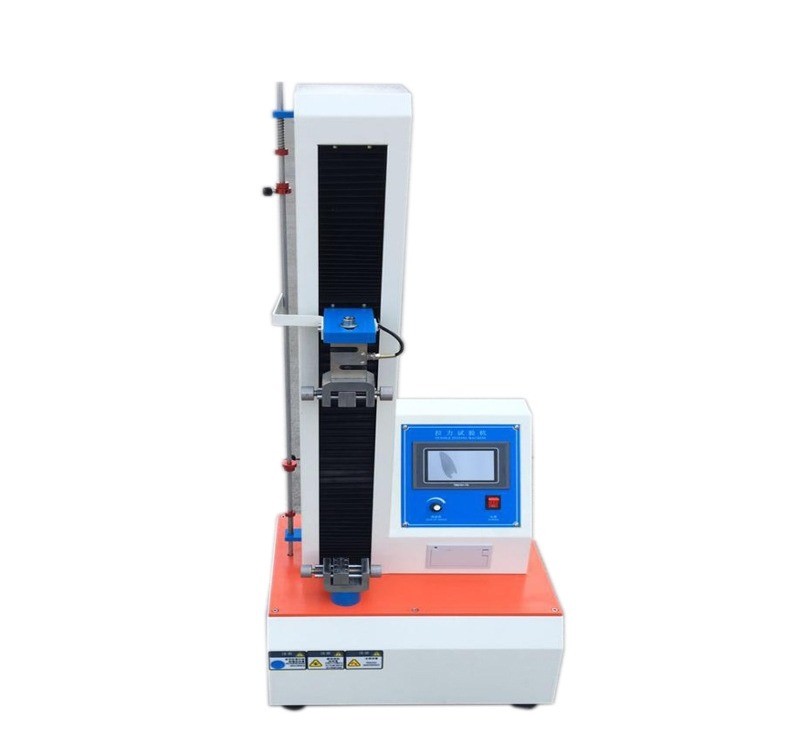

Microcomputer Peel Strength test Device for the Detection of Adhesives Adhesive Tapes

Product Introduction:

  It is a professional application for the detection of adhesives, adhesive tapes, self-adhesives, medical patches, protective films, release papers, composite films and other products, and can also be used for peeling, pulling off and other performance tests of artificial leather, film, paper and other related products.

Referring to the ISO national standard and the latest national standard for paper tubes, it is a re-developed instrument. It is a mechatronics structure, and adopts modern mechanical design concept and microcomputer processing technology for careful and reasonable design. The instrument adopts the lower clamp fixed type, and the measurement accuracy is high. It has a powerful data processing function, which can directly obtain the statistical results of various data.

Technical Parameters:

Capacity selection 5 kg

Accuracy level Level 0.5

Load accuracy ±0.5 %

Stroke resolution 0.001 mm

Display resolution 0.1 g

Force resolution 1/300000

Valid itinerary 650 mm

Speed of experimentation 0~500 mm/min

Test width Ø120 mm

Shutdown mode  Overload stop, emergency stop button, specimen damage automatic stop and reset, upper and lower limit setting automatic stop

Safety devices   Overload protection, limit protection

Strength unit switching Kgf,gf,N,kN,lbf

Stress unit switching N/m,N/cm,N/mm,N/25mm

Executive Standards:

GB/T4850-2002 Determination of low-speed unwinding strength of pressure-sensitive adhesive tape

GB8808-1988 Peel test method for soft composite plastic materials

GB/T2790-1995 Test method for 180 degree peel strength of adhesive

GB/T2791-1995 Test method for T peel strength of adhesives

GB2792-1998 Test method for peel strength of pressure sensitive adhesive tape 180

ASTM D3330/D3330M-2004(2010) Test Method for Peel Adhesion of Pressure-Sensitive Tapes

Operational Functions:

1. Automatic clearing: When the instrument receives the test start instruction, the measurement system will automatically clear it;

2. Automatic test: Put the sample into the fixture, press the "test button", and the instrument will automatically complete the whole test process;

3. Automatic return: After the sample is tested, the instrument will automatically identify and the instrument will automatically return to the initial position, which is convenient for the test of the next sample;

4. Automatic saving: Automatic saving of test data and test conditions;

5. Display mode: Microcomputer liquid crystal display, data dynamic display with the test process.

Protection Functions:

1. Limit protection: with program-controlled and mechanical two-pole protection to ensure that the instrument works normally within the set stroke;

2. Overload protection: when the load reaches 95% of the force sensor, the instrument will stop automatically;

3. Automatic diagnosis: check the measurement system and drive system regularly for overvoltage, overcurrent, overtemperature, etc., and stop the machine immediately if there is an abnormality.
