Scope of application: It is mainly applicable to the change characteristics of leather, plastic, rubber, cloth and other materials before and after heating. Observe the yellowing resistance, glue opening, shrinkage, elongation, residual rate and other properties of the test sample before and after aging, so as to determine its aging characteristics to assist epoxy powder spray coating, which has overload protection, light weight, small size, beautiful appearance and wide use.
Technical Parameters:
1. Time: 0~999 hours can be set arbitrarily.
2. Thermostat: with PID setting.
3. Temperature fluctuation: ±0.5°C
4. Temperature uniformity: ±2.5°C
5. Temperature range: room temperature ~ 200°C or room temperature ~ 300°C according to customer requirements design
6. Working size: 40cm× 50cm×50cm
7. Conform to the standard: meet the requirements of GB2099, GB5013, GB5023 and GB4706 test standards.
Aging testing machine is a general term for products in the test industry, aging test box includes: ozone aging, ultraviolet aging, xenon lamp aging, ventilation thermal aging, high temperature aging, salt spray corrosion aging... And many aging test methods. It is one of the most important methods of climate test in artificial environment.

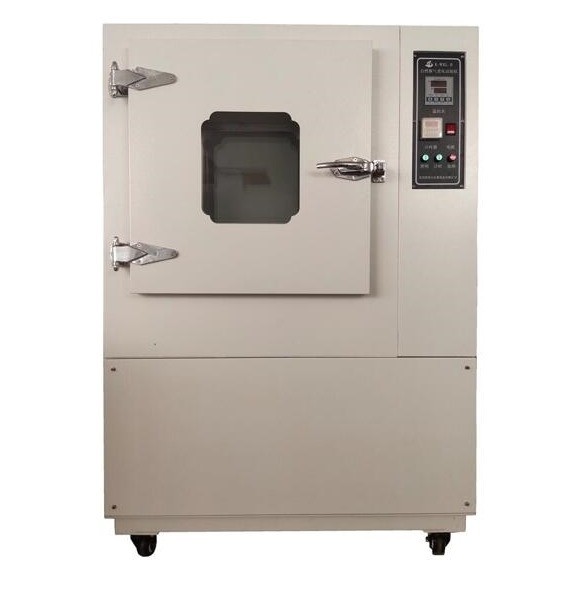

The aging testing machine is used to test wire, cable, insulator or coated rubber test piece to compare the tensile strength and elongation of the test piece before and after aging. The ventilation type aging test chamber uses hot air circulation to promote the aging of the test piece. The inner chamber is tightly sealed, equipped with an air removal device in the inner chamber and an automatic overtemperature cutting protection device, which meets the test requirements of ul-1581.

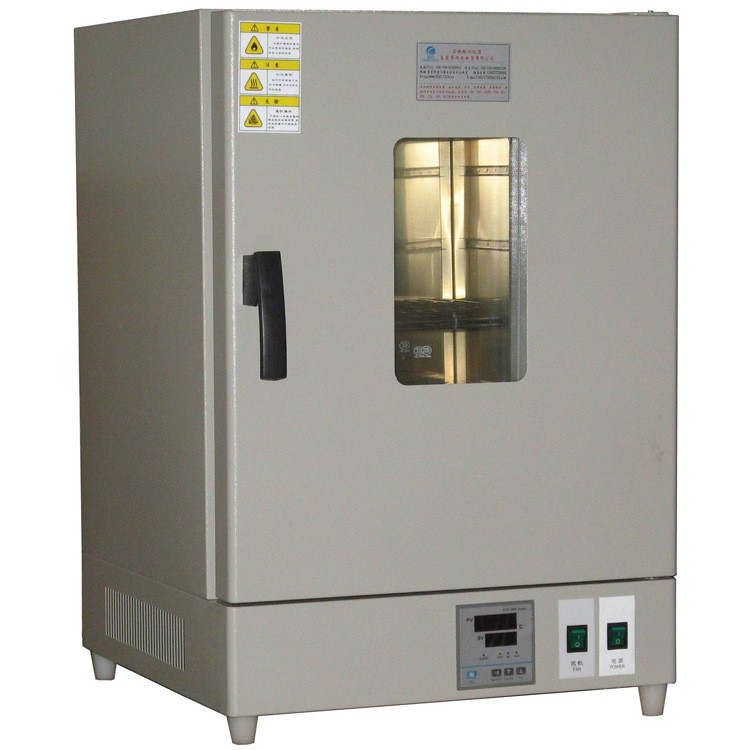

Thermal aging characteristics and uses: It can be used for hot air aging tests of rubber and plastic products, electrical insulation and other materials, and the temperature control adopts digital display and PID automatic adjustment thermostat, from room temperature to 200 °C-300 °C range, the working temperature can be set arbitrarily, and the temperature is automatically constant, and the blower motor is installed in the box to force the hot air to convection and promote the rapid aging test of the sample under constant temperature conditions. The structure of the main engine and the instruments and materials are designed after a detailed study of the airflow and temperature in the box, and the long-term use proves that it has the advantages of sensitive temperature control, good temperature uniformity, large effective space and stable performance. The test results are fully in line with the national standard for vulcanized rubber or thermoplastic rubber GB/T3512-2001 standard, GB/T2951.2-1997 cable insulation and sheath material thermal aging test and other standards.
Our Services
Our services:
1. High quality assurance.
2. Shipment of professional documents.
3. Packed according to your requirements, photos are attached before shipment.
4. Reply within 48 hours, 3 working days
5. Professional after-sales service of our engineers.
6. Warranty period is 12 months.
Company Information
Our advantages:
1. Professional technical support.
2. Rich experience in loading a large number of containers in Chinese seaports.
3. Fast shipping by well-known shipping company.
4. Best service with email after shipment.
5. We are a professional testing equipment manufacturer in China, with rich experience and skills, and also with the best quality products.
6. Timely after-sales service
