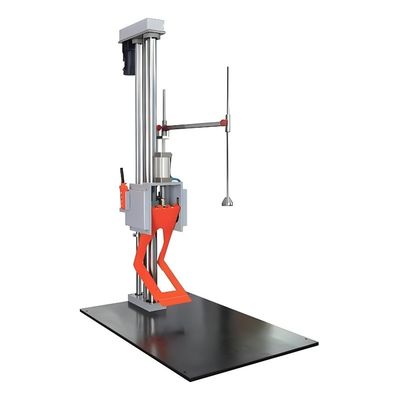

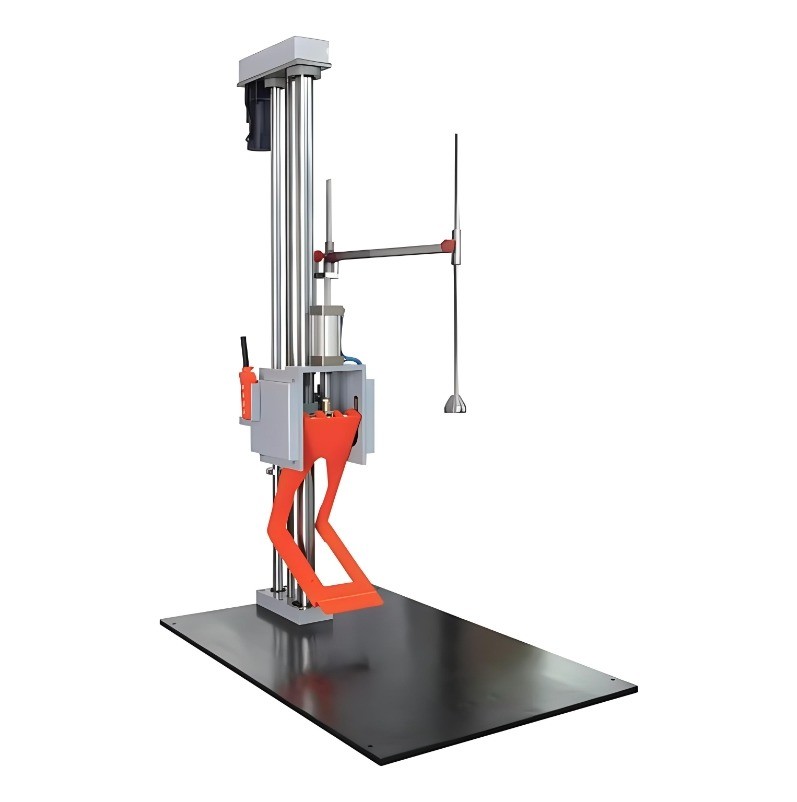

The main function of this device is to evaluate the impact on product performance when customers may accidentally drop the product during actual use. It is suitable for testing the original posture and acceleration drop of small consumer electronic products such as mobile phones, PDAs, telephones, electronic dictionaries, CDs, MP3 players, adapters, etc.
This model is currently the most widely used model in the mobile phone manufacturing industry: Nokia, Huawei Technologies, ZTE, SHARP Communications, Samsung, TCL, BBK, Desai Electronics, and other products can complete 0 °, 45 °, 90 ° diamond, corner, and face drops with multi angle devices.
[Product Features]
Local structure and design principles:
1) Double column linear bearing guidance, servo motor+synchronous belt driven lifting, can set the testing height arbitrarily, and the positioning is accurate;
2) Touch screen+high response PLC control, faster response speed, more stable operation, can measure acceleration, maximum landing speed, test time and other data;
3) The outer frame of the aluminum profile is equipped with a safety light curtain, providing a more reliable guarantee for the safety of the operator;
4) Hinged four bar scissor type mechanical clamping mechanism, with super cylinder drop speed to ensure accuracy (Huawei standard), combined with universal adjustment device to achieve 45 degrees, 90 degrees, and 180 degrees, diamond, angle, and surface drops;
5) Multiple materials are available for the drop board to meet the needs of different users;
6) Equipped with height compensation function, the system can automatically calculate the friction attenuation of the guide rod, correct the drop height, and ensure the final landing speed
[ Main functions ]
Directional drop test
Free fall test
Automatic and manual functions
Reference height compensation function
The drop height, final landing speed, and number of tests can be set
Delay release and sensor detection release selection function
Data calculation function, automatically calculating acceleration, final landing speed, test time, etc
High speed cameras from mainstream brands can be externally connected to achieve synchronization control, video editing, partition saving, and other functions (optional)
Pneumatic decoupling, uniform, stable and reliable force
Safety protection function (when the operator's limbs enter the interior of the equipment and the equipment does not start, it protects the operator's safety)
Technical specifications of mobile directional drop testing machine:
1. Maximum testing height: 300-1500mm (adjustable)
2. Maximum drop weight: 1kg
3. Minimum detachment height: 300mm
4. Counter: 0~999999
5. Gas source used: ≥ 0.5MPa
6. Machine size approximately: W700xD1000xH2400mm
7. Machine weight approximately: 150kg
8. Machine power supply: AC220V 50Hz 3A
1. Ensure the high quality of the product.
2. Packaging can be done according to customer requirements and pictures can be attached before shipment.
3. Transport professional documents
4. Provide professional product consultation before sales, and we guarantee to answer any professional technical questions you may have within 48 hours; Provide timely product technical services after sales, and provide solutions within three working days.
5. Our engineers provide professional after-sales service
6. The warranty period is 12 months. During the warranty period, we are responsible for providing free maintenance, upkeep, and replacement of damaged and defective parts (under normal use) for the user's equipment. After the free warranty ends, service fees will be charged at your discretion.
7. Provide the fastest response to maintenance and assistance requests from users. After the user submits a maintenance request, ensure to provide professional technical support in the shortest possible time and in the fastest way possible.
