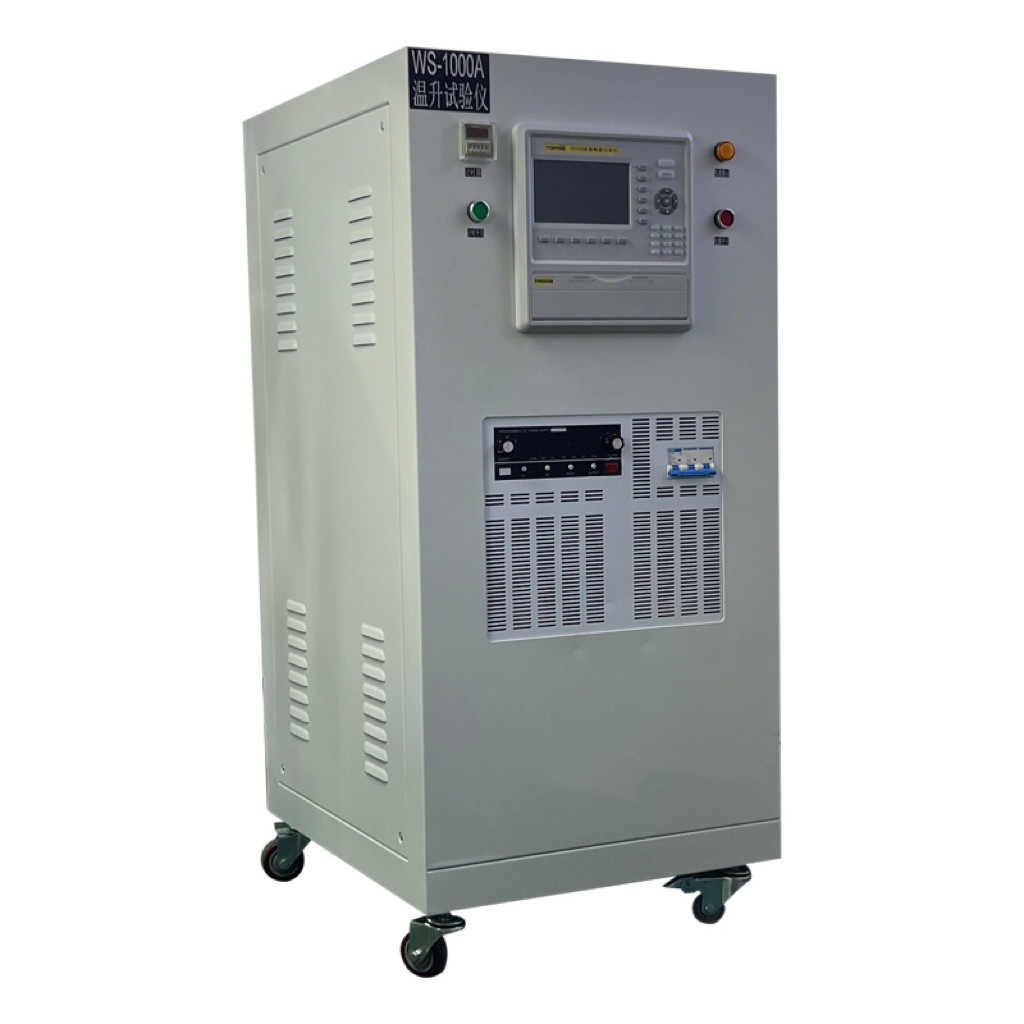

UL498 QC/T417 GB2099 Temperature Rise Testing Machine

1 Set
MOQ
US$2000-$30000
Price
UL498 QC/T417 GB2099 Temperature Rise Testing Machine
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM, OBM, Software Reengineering
Place Of Origin: Guangdong, China
Brand Name: CHENGFENG
Model Number: CF8498A
Power: Electronic
Keyword: Temperature Rise Testing Machine
Power Supply: AC220V±10%, 50/60Hz, 1KVA
Weight: About 60kg
Standard: UL817,UL310,GB16915,GB15092
Highlight:

UL498 Temperature Rise Testing Machine

,

GB2099 Temperature Rise Testing Machine

Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T,Cash,L/C,Western Union,MoneyGram
Supply Ability: 5 units per month
Product Description

1. DC regulated power supply:

Output voltage: DC0~12V

Continuous maximum output current: 0.1~30A adjustable

Load stability: 0.5%

2. DC constant current load source:

Maximum input test voltage: DC12V

Output constant adjustable current: 0.50-1000A

4. Multi-channel temperature tester:

Temperature range: 0~260°C accuracy: 0.3% reading: 1°C; Resolution: 0.1 °C

Temperature measurement points: 8 channels (including 1 point to measure ambient temperature);

Thermocouples: J type 30AWG filament thermocouples from Ω Company, 2 meters in length, a total of 8 thermocouples;

The temperature probe can be tested live without damaging the instrument

Temperature data collection: TWC-2A multi-channel temperature tester is completed, RS232 communication interface is configured, and data logging interface is configured

Temperature scanning speed: 1~255 seconds for all channels

Temperature data recording: automatically completed by the computer, equipped with computer testing software

The software can set the ambient temperature channel, and the ambient temperature can be automatically subtracted when collecting data

5. Power supply: AC220V±10%, 50/60Hz, 1KVA

6. The user supports himself: a computer, installed with XP operating system, OFFICE processing software

With RS232 communication interface or configuration USB to RS232 communication port

7. Test fixture: made according to the user's sample, and the tested component can be placed at 6 stations

8. Size: about 600mm wide× 600mm deep × 800mm high

9. Weight: about 60kg
