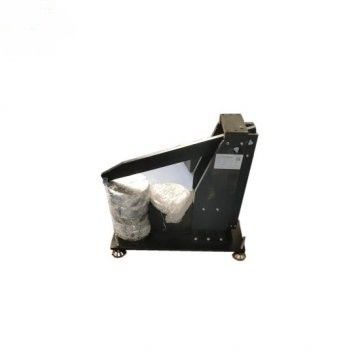

ASTM D621 Rigid Plastic Load Deformation Testing Machine Environmental Chamber

Technical Parameters:

Loading form: A constant load of 113kg, 227kg, 454kg±1% is applied in two parallel pressure plates of the testing machine. The pressure of these two plates can be adjusted so that they are in full contact with the specimen before the load is applied;

Bearing: In order to make the load act evenly on the surface of the sample, one of the machine supports can be adjusted, and the load can pass through the center line of the sample;

Deformation meter: measurement accuracy<0.001mm;

Micrometer: 0.001mm;

Test environment temperature requirements: 23°C±5°C;

Test environment humidity requirements: 50%±5%;

Environmental chamber not included;

Scope of application: It is mainly suitable for rigid plastics connected by rivets, bolts or similar connections, to determine their ability to withstand compression without yielding or loosening over time; Applies to non-rigid plastics to determine their ability to deform and return to their original dimensions over time.

Conform to the standard: Meets the requirements of the test standard of "ASTM D621 Test Method for Deformation of Plastic Loads".

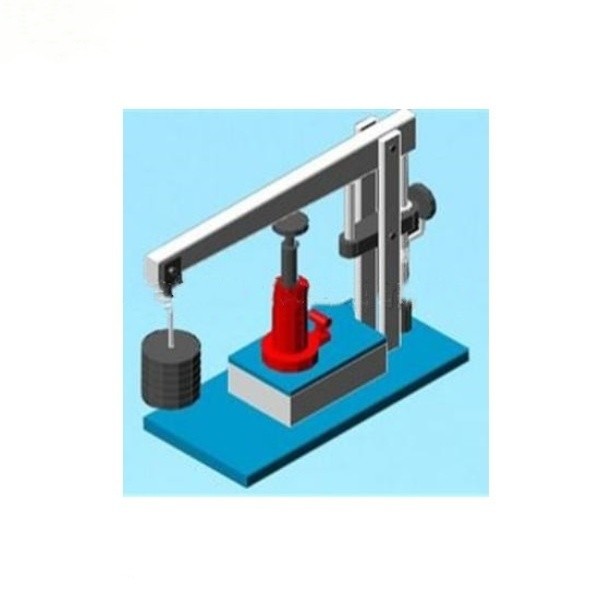

Working principle: Put the sample in the middle of the parallel plate with a unit of measurement, carry out the required force conditions through the conventional loading system, and read the thickness change of the test sample at the specified temperature and conditions.

Our advantages:

1. Professional technical support.

2. Rich experience in loading a large number of containers in Chinese seaports.

3. Fast shipping by well-known shipping company.

4. Best service with email after shipment.

5. We are a professional testing equipment manufacturer in China, with rich experience and skills, and also with the best quality products.

6. Timely after-sales service

After-sales service :

1. We guarantee that the goods fully comply with the quality, specifications and performance requirements stipulated in the contract;

2. Before delivery, we will conduct accurate and comprehensive testing of the products; Packing according to your requirements, pictures are attached before shipment for your confirmation, delivery is made on schedule, and professional shipping documents are provided;

3. We will provide you with quality service immediately, reply within 48 hours after receiving the quality message, and provide appropriate solutions within 3 working days;

4. After acceptance, our engineers will provide professional and technical services free of charge, such as video guidance and teaching, and on-site guidance and teaching if necessary;

5. We provide a 12-month warranty period, and in the event of quality problems during the product warranty period (not caused by human factors), we guarantee to provide free repair, maintenance and replacement of damaged and defective parts services;
