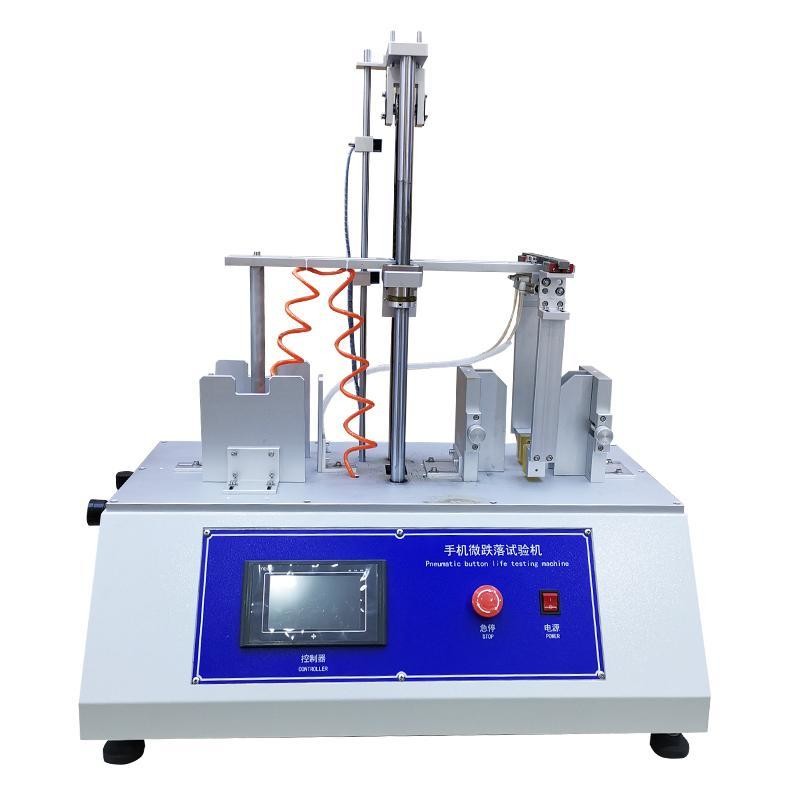

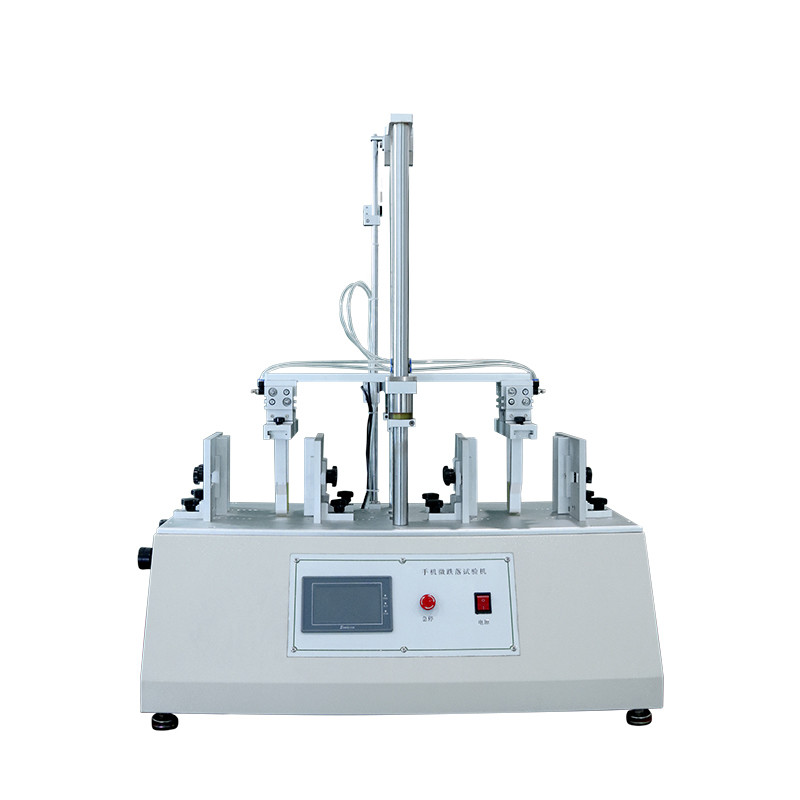

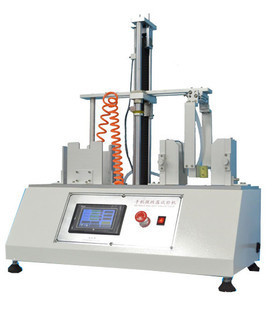

Product description:
|
This machine is suitable for repeated drop tests of small electronic consumer products such as mobile phones, telephone handsets,
walkie-talkies, MP3s, CDs, electronic dictionaries, etc |
Technical parameters:
|
1. Drop mobile phones at the same time: 2 units
2. Allowable specimen weight: 2kg(max) 3. Drop height: 60-200mm 4. Test speed range: 6~20 times/min5, PLC controller and touch screen: 1 set 6. Machine size: W550*H750*D650mm 7. Machine weight: about 40kg 8. Air source: ≥0.5Mpa 9. Power supply: AC 220V or specified Note: Part of the electrical and main body are integrated |
Features:
|
It can be set to stop automatically for the number of times
Drop surface material: aluminum, thickness 12mm. The baffle at the place of the fall is reset. Prompt function: It can set the fixed value of the number of key strokes, and can automatically stop the test. This machine uses Japanese Shinano motor as the driving source for lifting and dropping mobile phones, which is durable to use; It can realize repeated drops of mobile phones and other products to detect the impact resistance of products falling from a certain height; Due to the use of pneumatic components and exclusive control methods, the test speed and consistency are greatly improved; Display control LCD touch control screen + PLC programmable controller for action program control; Count at the same time, and automatically stop the test when the set number of times is reached |
The principle of action:
|
The motor drives the upper fixture (air finger) to descend to clamp the mobile phone, rise, release the gas finger, and the mobile
phone becomes a free fall movement, at this time, the double-action cylinder telescopic pushes the mobile phone to the position where the upper fixture can be clamped, and the motor drives the upper fixture (air finger) to descend to clamp the mobile phone, rise, birch the air finger, and the mobile phone becomes a free fall movement, and so on until the set number of times. |
