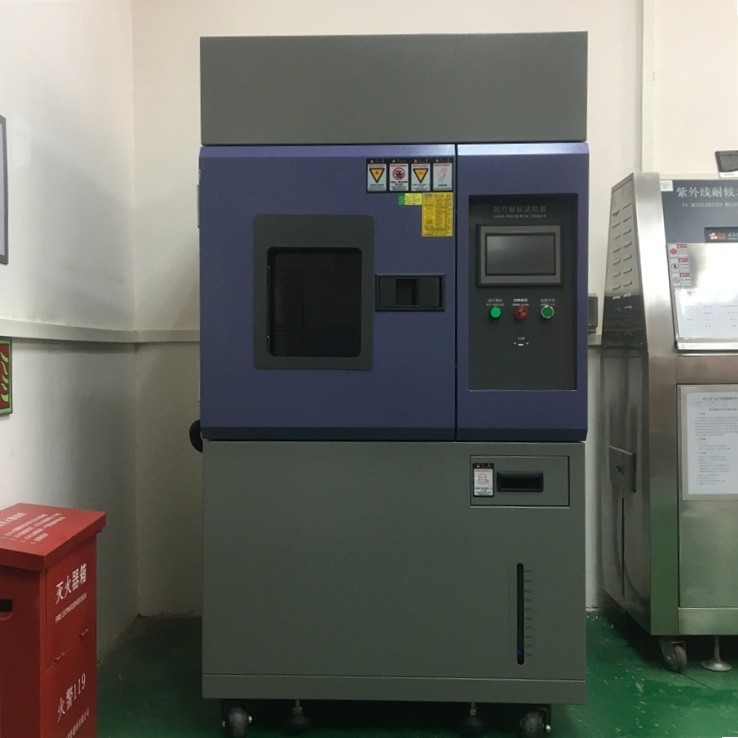

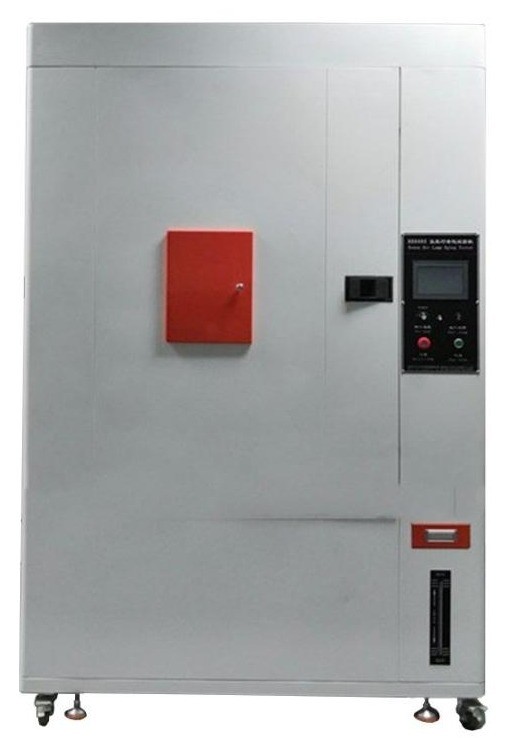

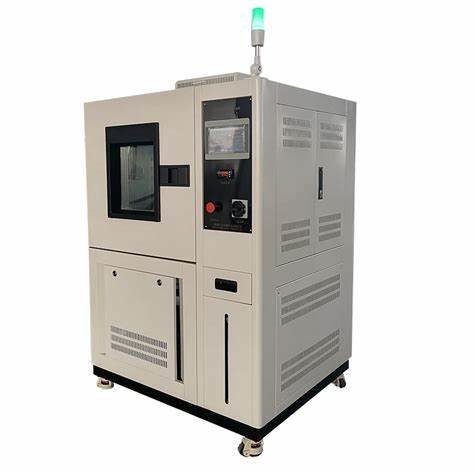

Xenon Arc Lamp Aging Testing Machine Provide Environmental Simulation And Accelerated Testing

Application industry:

Suitable for plastics, rubber, paints, coatings, inks, paper, medicines, food, cosmetics, textiles, auto parts, packaging
materials, building materials, electrical products, etc.; It provides corresponding environmental simulation and accelerated tests
for scientific research, product development and quality control, and provides an important test basis.

 Comply with the standard:

This product conforms to GB/T16422.2, GB9344, GB/T1865-97, ASTM G 155-04a and other national standards.

Performance indicators:

Temperature range: RT+10°C~80°C
Humidity Range: 50%±5%
Rainfall time: 1~9999 minutes, adjustable
Rainfall period: 1-240 minutes, adjustable interval (break).
Spectral wavelength: 300nm~400nm
Xenon lamp power: 8.5kw (lifespan: 2600 hours, water cooling)
Control Operating System: A PC can be used to control/operate the chamber system via IP connection
Lamp: 300mm long, 2 in total
Time Controller: Touch screen precision timing control
Accuracy range: set accuracy: temperature±0.1°C, humidity±0.5%R· H； Indication accuracy: temperature±0.1°C, humidity±0.5%R· H
Temperature and humidity sensor: platinum resistance Pt100Ω/mv
Humidification system: external isolated all-stainless steel shallow surface evaporative humidifier
Blackboard temperature: Bimetal blackboard thermometer 55°C~75°C
Water supply system: The humidified water supply is automatically controlled, and the xenon lamp cools the circulating water
Temperature controller: imported microcomputer temperature and humidity integrated controller
Humidity: 30%~65%RH when irradiated, up to 90%RH when dark
Radiation intensity: 0-60W/m²
Circulating system: temperature-resistant and low-noise air-conditioning motor, multi-leaf centrifugal wind wheel
Outer box material: high-grade sprayed color steel plate/SUS304 stainless steel matte line hairline treatment
Inner box material: SUS304 high-quality stainless steel light plate
Sample holder material: SUS304 high-quality stainless steel strip
Door frame insulation: high and low temperature aging resistant silicone rubber door seal
Standard configuration: 1 set of radiation-proof glass windows, 1 dynamic sample rack, 2 xenon lamps
Safety protection: leakage, short circuit, overtemperature, water shortage, motor overheating, overcurrent protection/controller
power failure memory
Power supply voltage: AC380V±10% 50±0.5HZ three-phase five-wire system
Ambient temperature: ±5°C~+30°C ≤85%R· H
Water cooling system: 1 set, cooling system: 1 set
Xenon lamp power supply: 1 set
Number of test pieces: 5 pieces in a set
The thickness of the clamp is up to 120mm, and the thickness of the five clamps can be adjusted independently
Lab Space 1650mm x 1640mm x 2420mm (L*D*H)
