Automotive Wire Cross-linking Testing Machine, Suitable for Thin-walled Low-voltage Cables Below DC 60V (AC 25V) for Automobile
Conform to the standard:
|
meet the requirements of GB9328 test standard.
|
Scope of application:
|
It is suitable for thin-walled low-voltage cables below DC 60V (AC 25V) for automobiles
|
Product Overview:
|

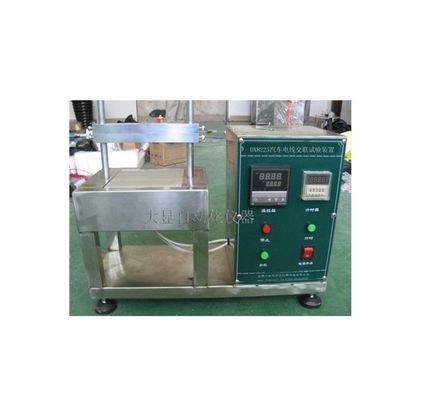

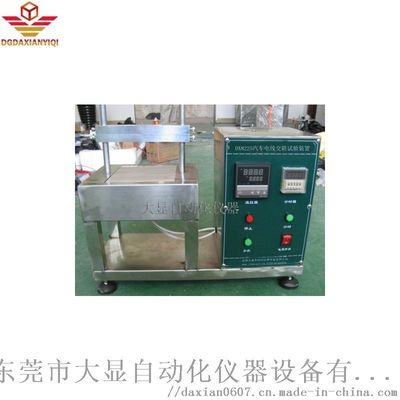

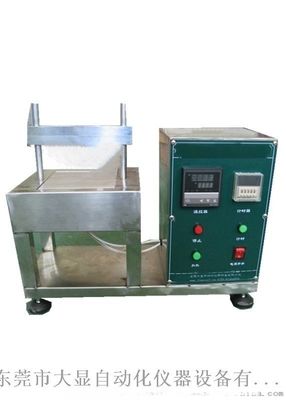

This testing machine has passed the cross-linking test of low-voltage cables for automobiles; The equipment is composed of a
control box, an ironing plate, a thermostat and a timer. |
The main technical parameters of the instrument:
|
1. Test stick: Ф6mm, length 300mm
2. Specifications of red-hot plate: 150mm× 150mm× 150mm Material: aluminum plate 3. Blazing plate: Material: aluminum 4. Load: 5~7N 5. Chronograph: 1 piece 6. Test environment requirements: 250±25°C |
