Features

Specifications

Warranty: 1 Year

Customized Support: OEM, ODM, OBM, Software Reengineering

Place Of Origin: Guangdong, China

Model Number: CF8498A

Temperature Range: 0~260°C Accuracy: 0.3%

Temperature Measurement Points: 8 Channels (including 1 Point To Measure Ambient Temperature)

Thermocouples: J Type 30AWG Filament Thermocouples From Ω Company

Temperature Data Collection: TWC-2A Multi-channel Temperature Tester Is Completed

Temperature Scanning Speed: 1~255 Seconds For All Channels

Power Supply: AC220V±10%, 50/60Hz, 1KVA

Highlight:

Temperature Rise Testing Equipment

AC220V Temperature Rise Test

Basic Infomation

Place of Origin: China

Brand Name: CHENGFENG

Certification: ISO,CE

Payment & Shipping Terms

Packaging Details: Wooden cases

Delivery Time: 10 Work Days

Payment Terms: T/T,Cash,L/C,Western Union,MoneyGram

Supply Ability: 5 units per month

Gallery

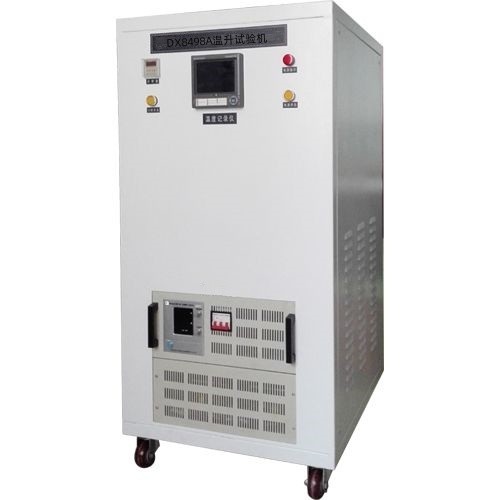

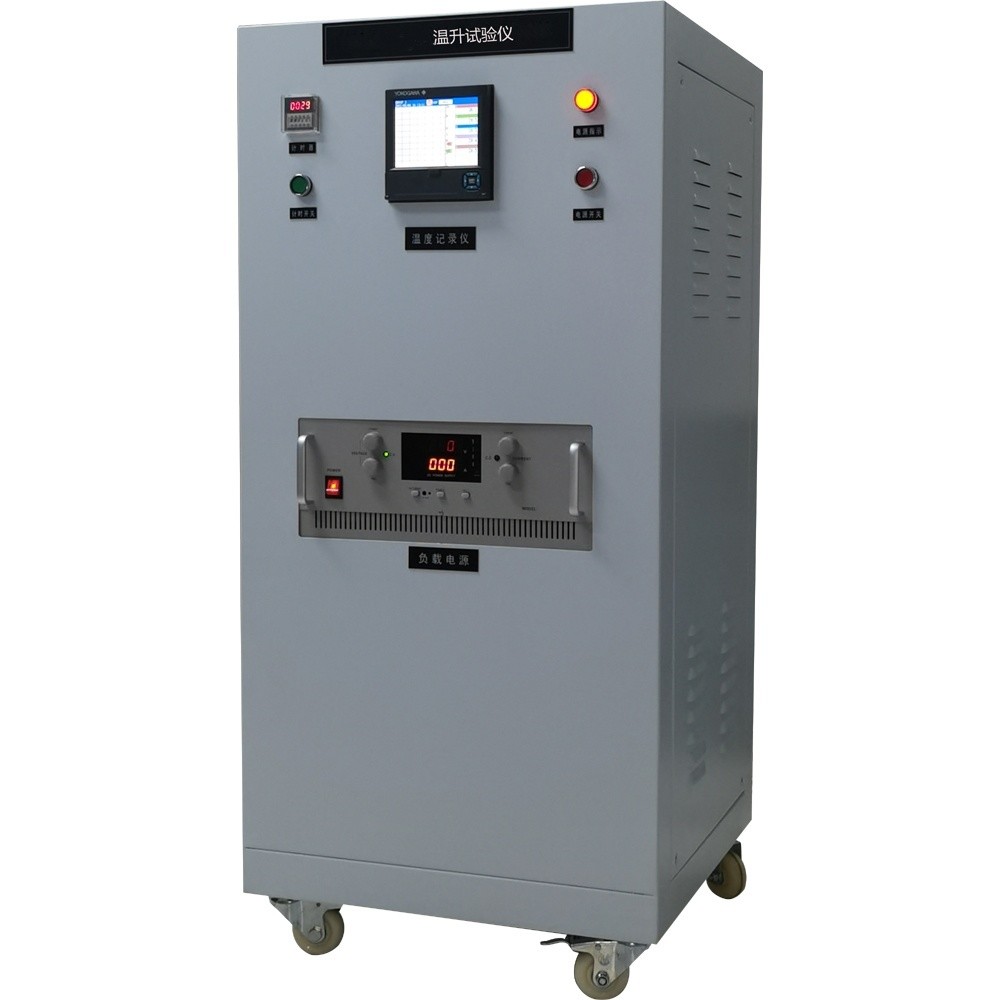

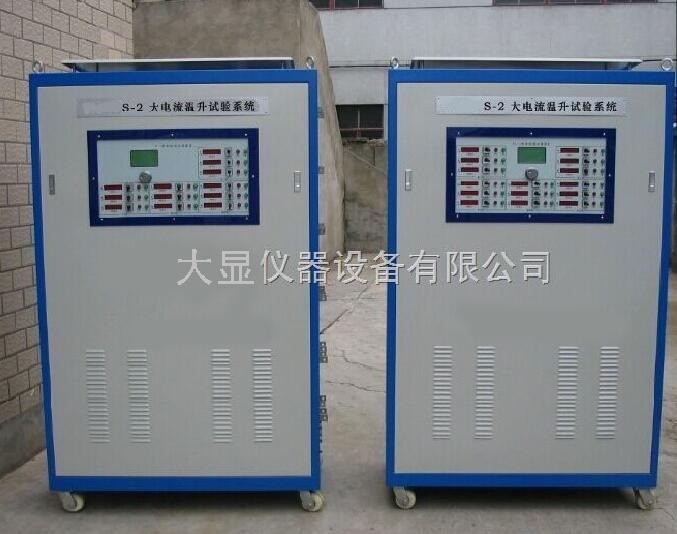

Temperature Rise Testing Equipment Surface Heating Of Load Current Electrical Accessories

Product Description

Specification

DC regulated power supply:	Output voltage: DC0~12V Continuous maximum output current: 0.1~30A adjustable Load stability: 0.5% DC constant current load source: Maximum input test voltage: DC12V Output constant adjustable current: 0.50-1000A Controller: Working mode: continuous/on/off Continuous mode test time: 1~59999 minutes On-off mode power-on/power-off time: 1~59999 minutes On-off times: 1~9999 times, with power-off memory function, the number of times to automatic shutdown
Conform to standards:	It is developed in accordance with the relevant standards of UL498, QC/T417, GB2099, GB16915, GB15092, UL817, UL310 and other electrical accessories.
Scope of application:	It can be used to assess the surface heating of electrical accessories when they are connected to the load current, and whether the temperature rise of the electrode meets the requirements of the standard.
Main parameters:	Multi-channel temperature tester: Temperature range: 0~260°C accuracy: 0.3% reading: 1°C; Resolution: 0.1 °C Temperature measurement points: 8 channels (including 1 point to measure ambient temperature); Thermocouples: J type 30AWG filament thermocouples from Ω Company, 2 meters in length, a total of 8 thermocouples; The temperature probe can be tested live without damaging the instrument Temperature data collection: TWC-2A multi-channel temperature tester is completed, RS232 communication interface is configured, and data logging interface is configured Temperature scanning speed: 1~255 seconds for all channels Temperature data recording: automatically completed by the computer, equipped with computer testing software The software can set the ambient temperature channel, and the ambient temperature can be automatically subtracted when collecting data. Power supply: AC220V±10%, 50/60Hz, 1KVA The user supports himself: a computer, installed with XP operating system, OFFICE processing software With RS232 communication interface or configuration USB to RS232 communication port Test fixture: made according to the user's sample, and the tested component can be placed at 6 stations Size: about 600mm wide× 600mm deep × 800mm high Weight: about 60kg

1. Unique selling point: 12 years of professional research and development, only solving problems for customers. 2. Professional team: A technical research and development team with 12 years of experience, leading in professional knowledge and practical skills. 3. Quality assurance: The company strictly controls quality standards, meets customer standard requirements, and exceeds customer expectations. 4. Innovation ability: Develop products that meet customer needs, and years of experience make product development forward-looking and leading. 5. Competitive advantages: reliable quality, flexible and applicable equipment performance, reasonable equipment prices, high delivery speed, and guaranteed customer after-sales service. 6. Provide customized solutions for customers: fully understand customer needs, provide personalized solutions, and completely solve customer problems. 7. Reliability and credibility: The company operates steadily for a long time, winning the long-term trust of customers and solving their concerns.

Packing & Delivery

FAQ

Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?
A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?
A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.
