IEC 61215 Dynamic Mechanical Load Tester For Photovoltaic Module Machine

Product name:

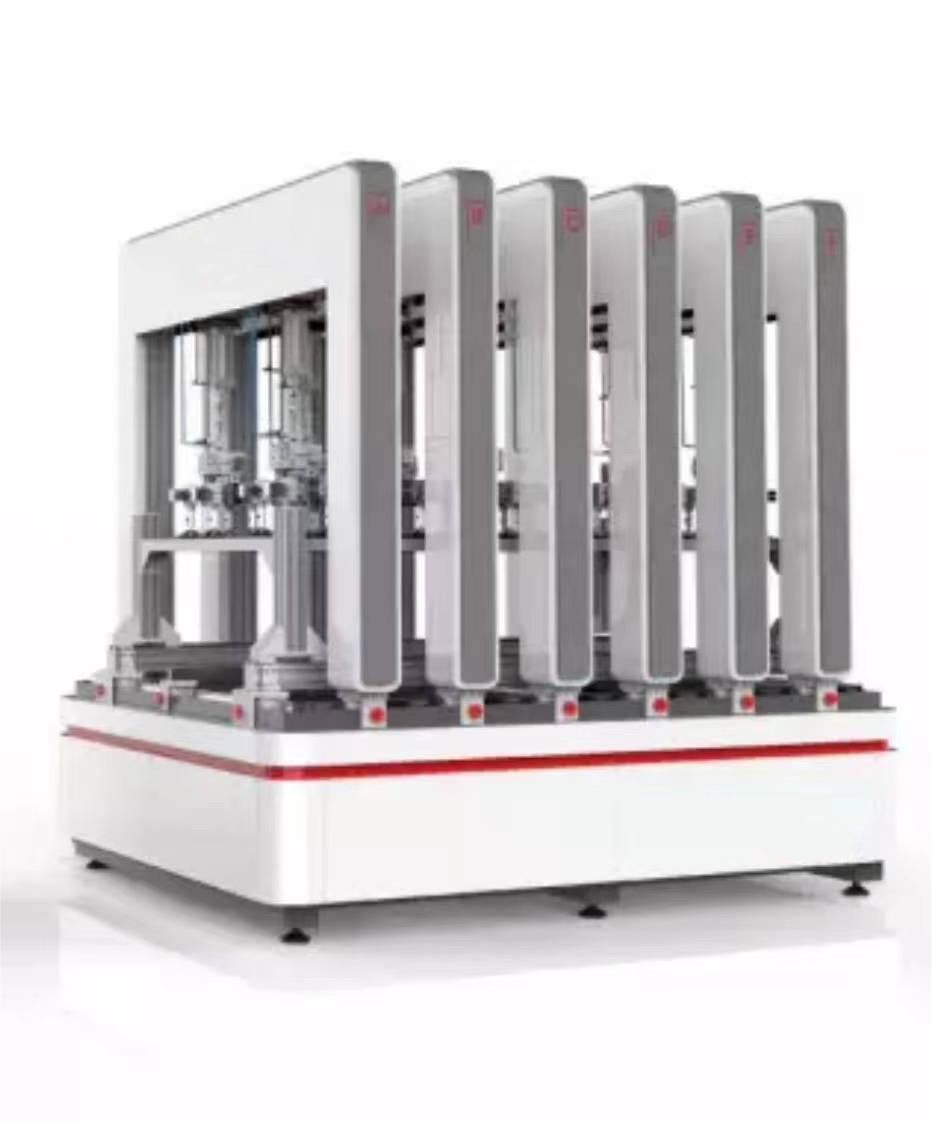

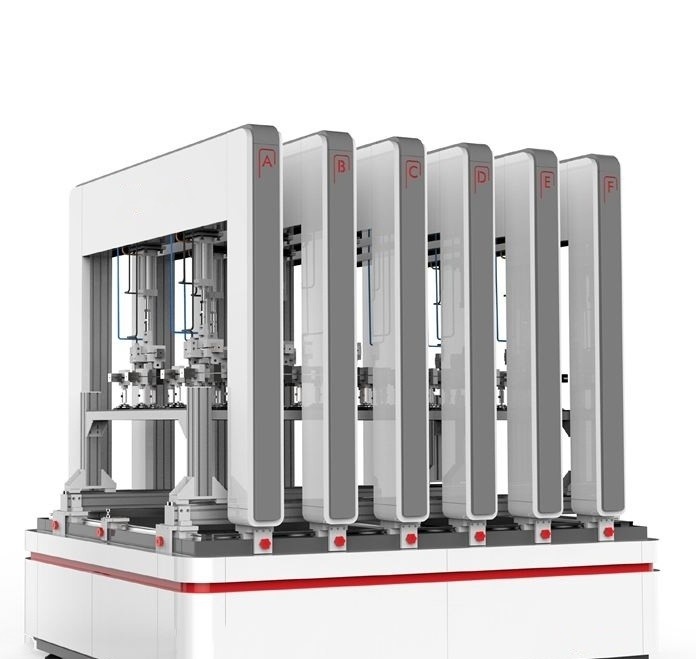

DX9815 Dynamic Mechanical Load Tester for Photovoltaic Module Machine

Overview:

Validates the ability of a component to withstand static and dynamic loads such as wind, snow, or ice at different mounting
angles. It is widely used to test the compressive strength test of photovoltaic modules, and adopts dynamic pressure holding
technology to simulate the load test to understand the compressive capacity of the product under load.

Applicable standards:

meet the requirements of IEC 61215, UL1703, IEC 61646, IEC 62782 standards

Technical Specifications:

1. The appearance size of the machine is about: width 3700 * length 2700 * height 2500mm
2. Test the forward load of 5400Pax design load and the reverse load of 2400Pax design load
3. Number of cycles: free setting.
4. Dynamic load test frequency: 7s ±3s
5. Dynamic load: 1000Pa, 1000 times
6. Pressure control accuracy: 5%
7. Pneumatic and force feedback mode: low friction cylinder, tensile pressure sensor (accuracy 0.1 N)
8. Structural characteristics of aluminum profile: the platform and the bracket are not deformed under the test force
9. Test size: 2.6x1.6m (customized according to the size of the user's components)
10. The customized test platform clamp fixture can be adjusted according to the installation method of the object to be tested
11. Current continuity system: DC power supply, DC 120V/20A, real-time monitoring of the internal current continuity of the
component

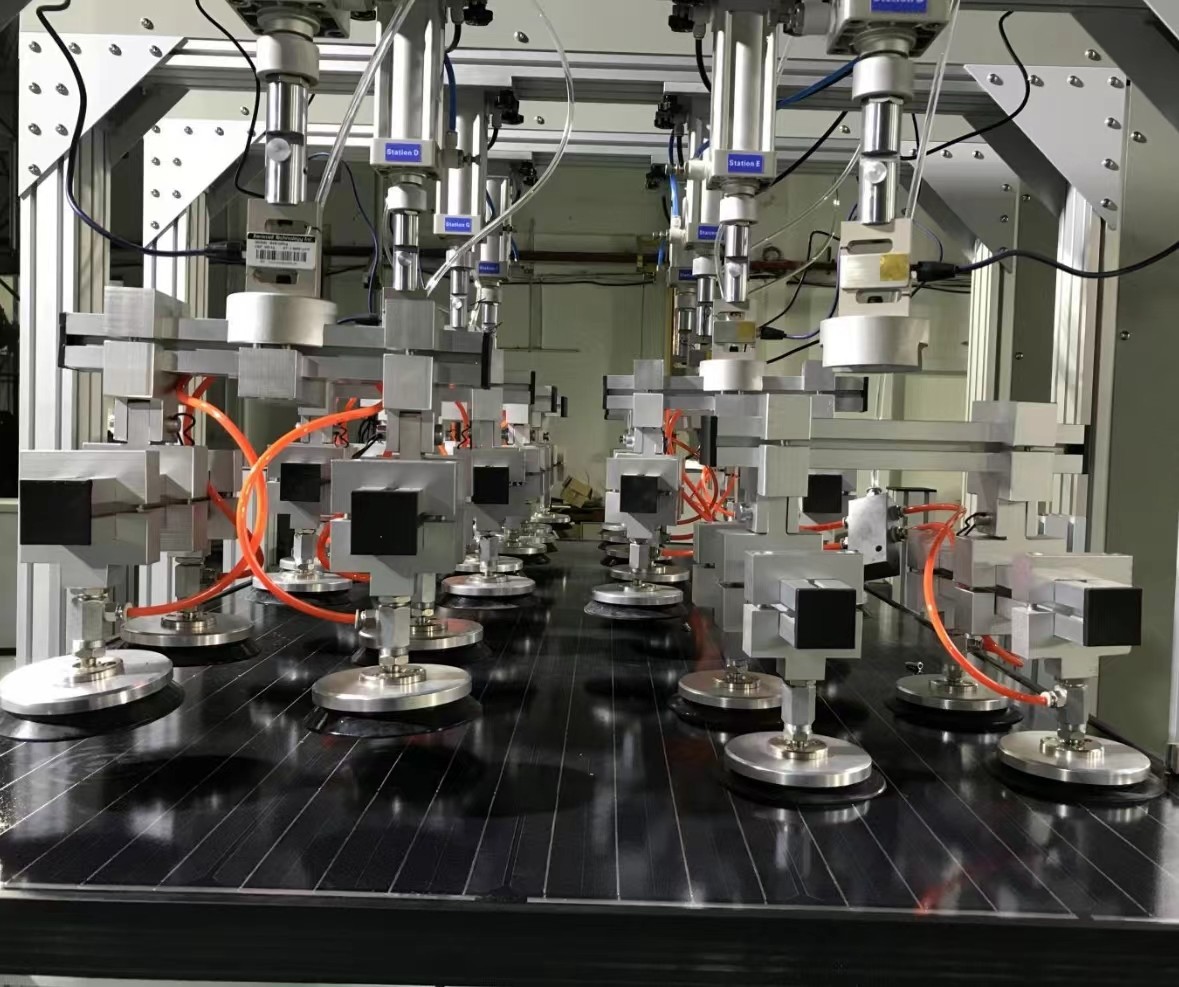

12. Number of cylinders: 84 in total (12x7); Telescopic stroke: 300 mm

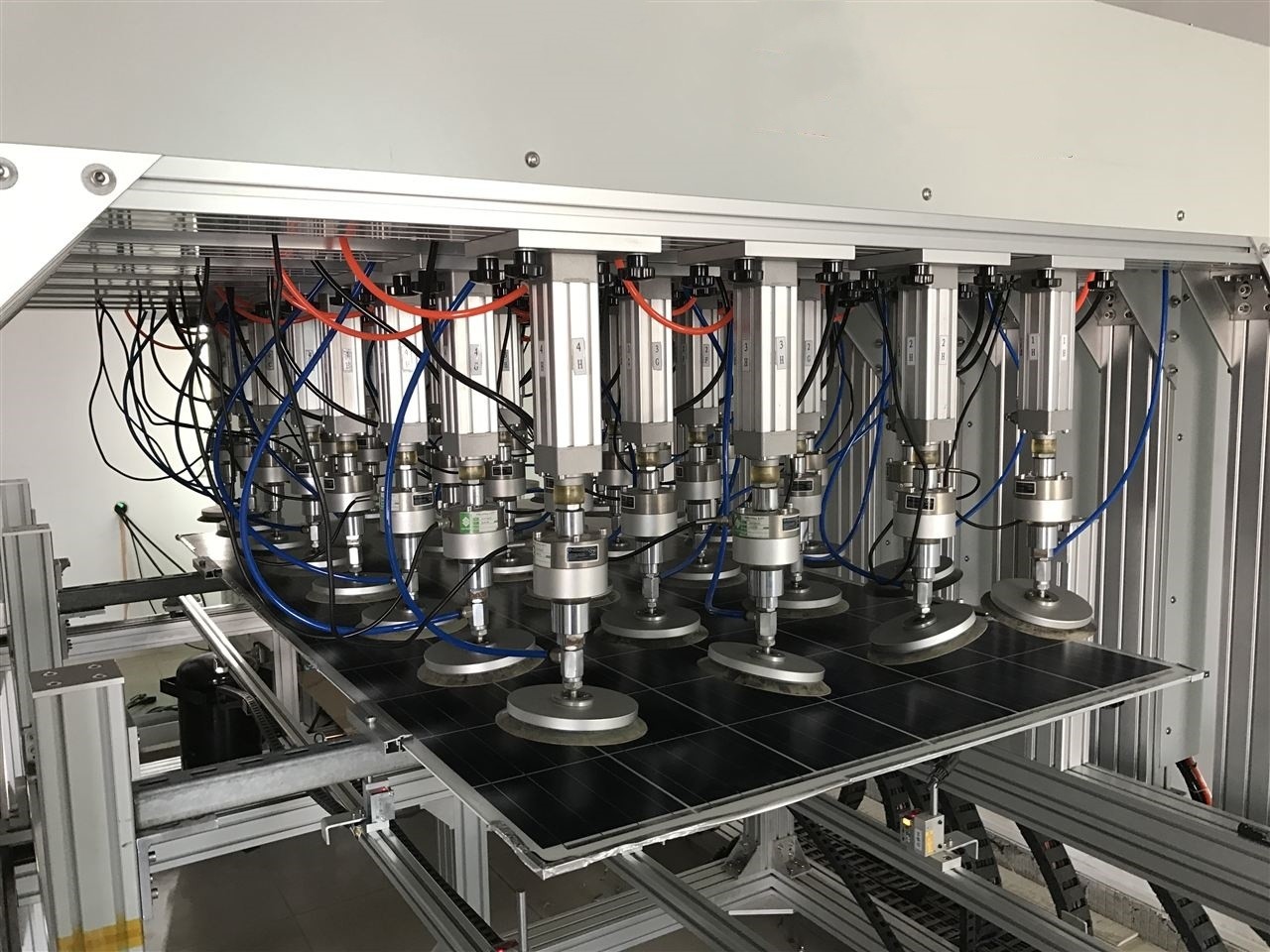

13. Number of suction cups: 84 in total (12x7); Suction cup diameter: 120 mm
The distance between the suction cup (and the cylinder) is 200mm horizontally and vertically; The suction cup and the upper
connection joint can be rotated at an angle of n 15
14. a control system
14.1. Our company independently developed the upper computer control software, which is simple and stable to operate
14.2. The software supports Chinese simplified, Chinese traditional and English language switching
14.3. The software displays the pressure, deformation, test time, cycle times, and current continuity in real time
14.4. Real-time drawing, real-time display of pressure and deformation values
14.5. Real-time display of the force value of each cylinder and draw the force value curve in real time
14.6. Real-time storage, query and printing of test data
14.7. Export test data to Word, Excel, PDF, JPG format
14.8. Fault warning function.
