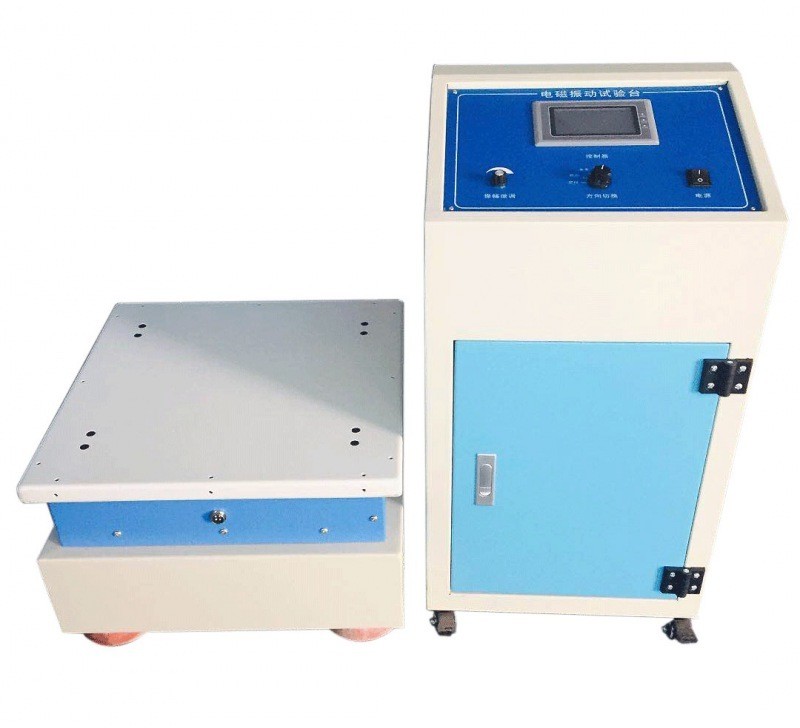

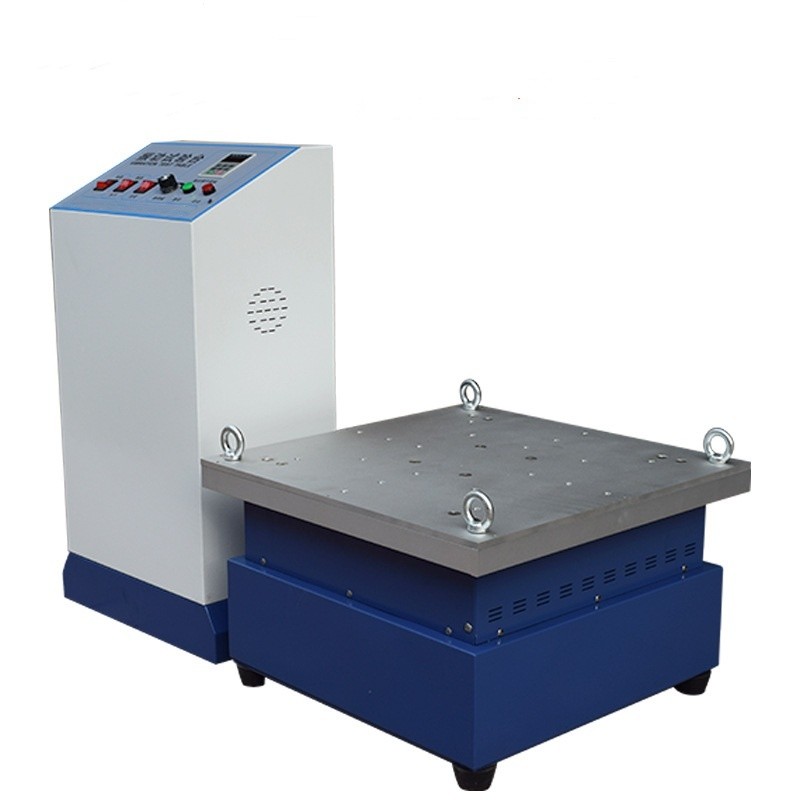

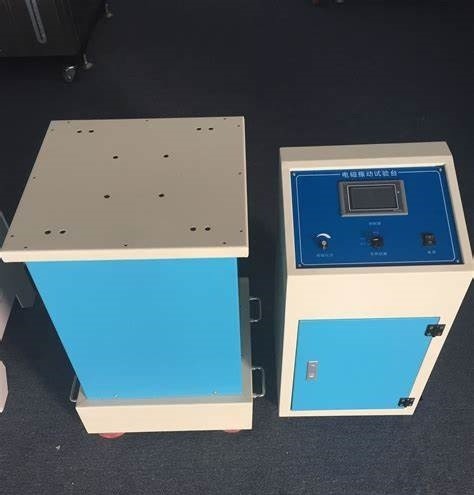

Electromagnetic Vibration Testing Equipment For Quality Inspection Of Product

Specifications:

Low-frequency Electromagnetic Vibration Analyzer
For quality control and manufacturing
Test productcts anti-vibration

Equipment summary:

Low-frequency electromagnetic vibration analyzer is suitable for electronic, electro mechanical, optical communications,
packaging, auto parts, toys and other industry research, development, quality control and manufacturing. quality control
inspection and production line, assembly line. It is more suitable for quality inspection of finished product for improving
product quality.

Main functions:

Sine wave (half-wave/full-wave), FM, sweep, programmable, octave, amplitude, maximum acceleration, time control, 485 communication
interface, simple acceleration setting, simple fixed amplitude

Technical parameter:

Vibration table size:50*1*50cm (L*H*W)
Table size: Vertical 50*20*50cm (L*H*W)
Vibration direction: Vertical
Max testing load: 0~100(Kg)
FM function(1~400HZ): either a frequency in the frequency range must be (maximum acceleration / 20g maximum amplitude / 5mm)
Sweep function(1~400HZ): (up frequency / down frequency / time range)can be swept back and forth by setting arbitrarily standard
Programmable Function (1~400HZ): 1 ~ 15 of each segment can be arbitrarily set (frequency / time) can be recycled
Harmonic function(1~400HZ): 1 ~ 15 multiply increase 1) low to highfrequency 2) high to low frequency 3)low to high and then to
low frequency / can be recycled
Logarithmic function(1~400HZ); 3 kinds of model number / can be recycled
Vibration Machine frequency:1.5 KW
Amplitude(mmp-p):0~5mm
Maximun Acceleration: 0~20g
Vibration wave: Sine wave (half-wave / full wave)
Time control: Can be installed at any time (seconds)
Supply voltage (V): 220±20%
Maximum current(A): 7
Full-featured computer-controlled: (need to purchase)it need to buy a adapter if want to control, storage,recording and print by
computer.
Precision:Frequency can display to the 0.01Hz, precision 0.1Hz
Shows the acceleration amplitude(optional): if you want to know the value of amplitude, acceleration,maximum acceleration, the
exact figure need to purchase this measuring instrument
