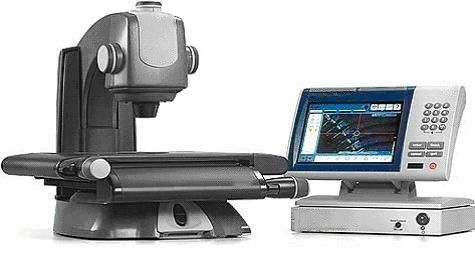

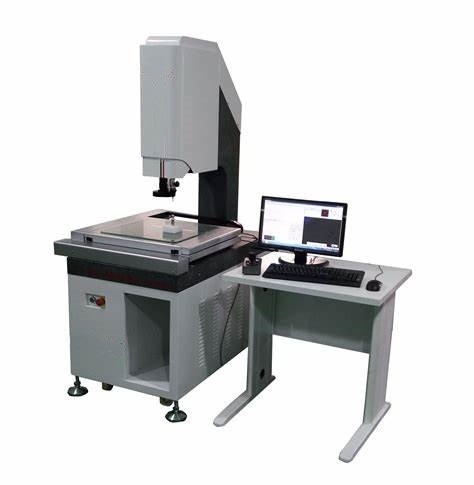

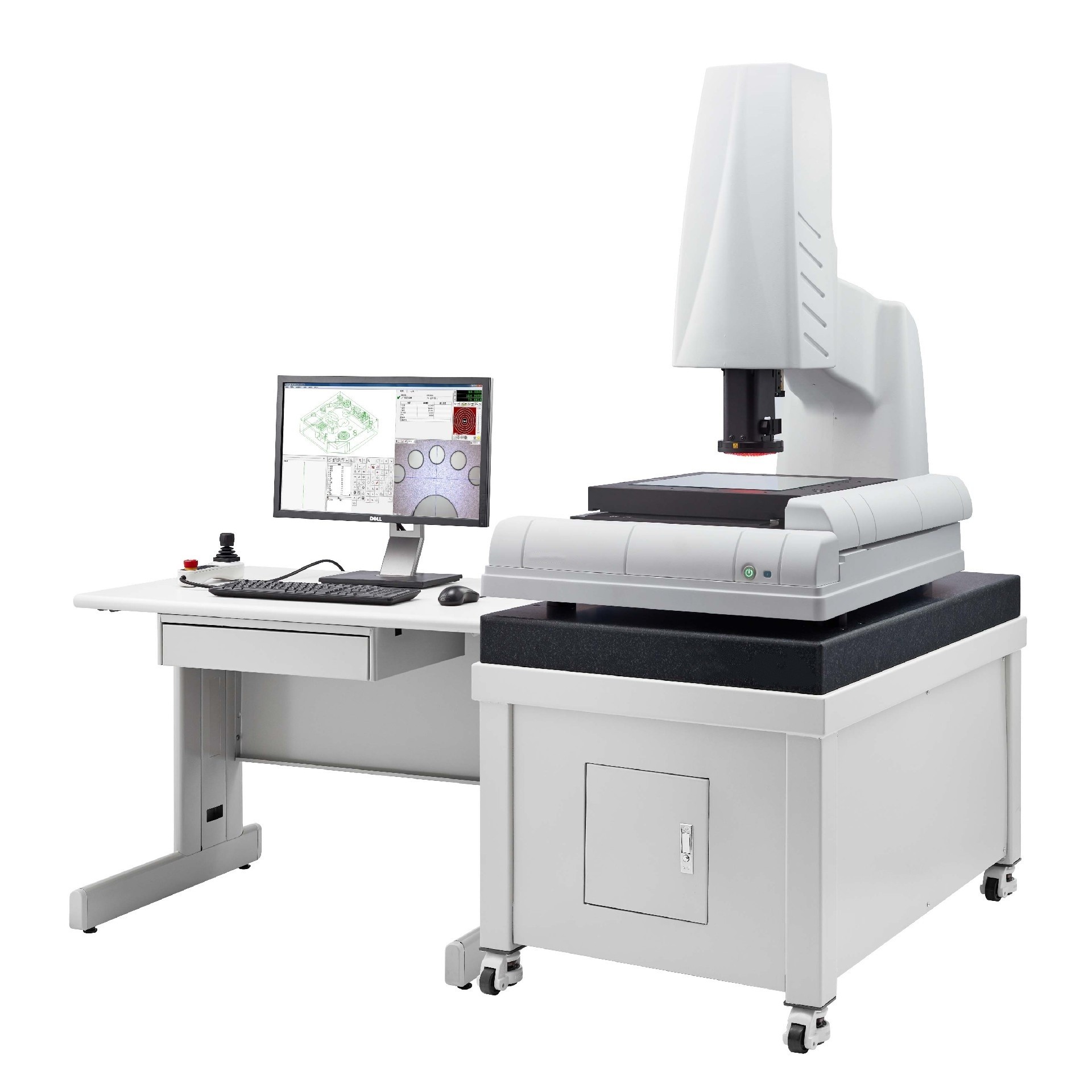

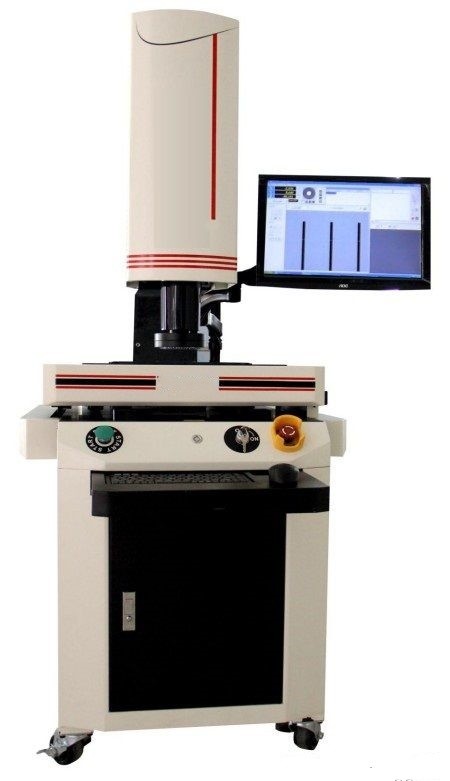

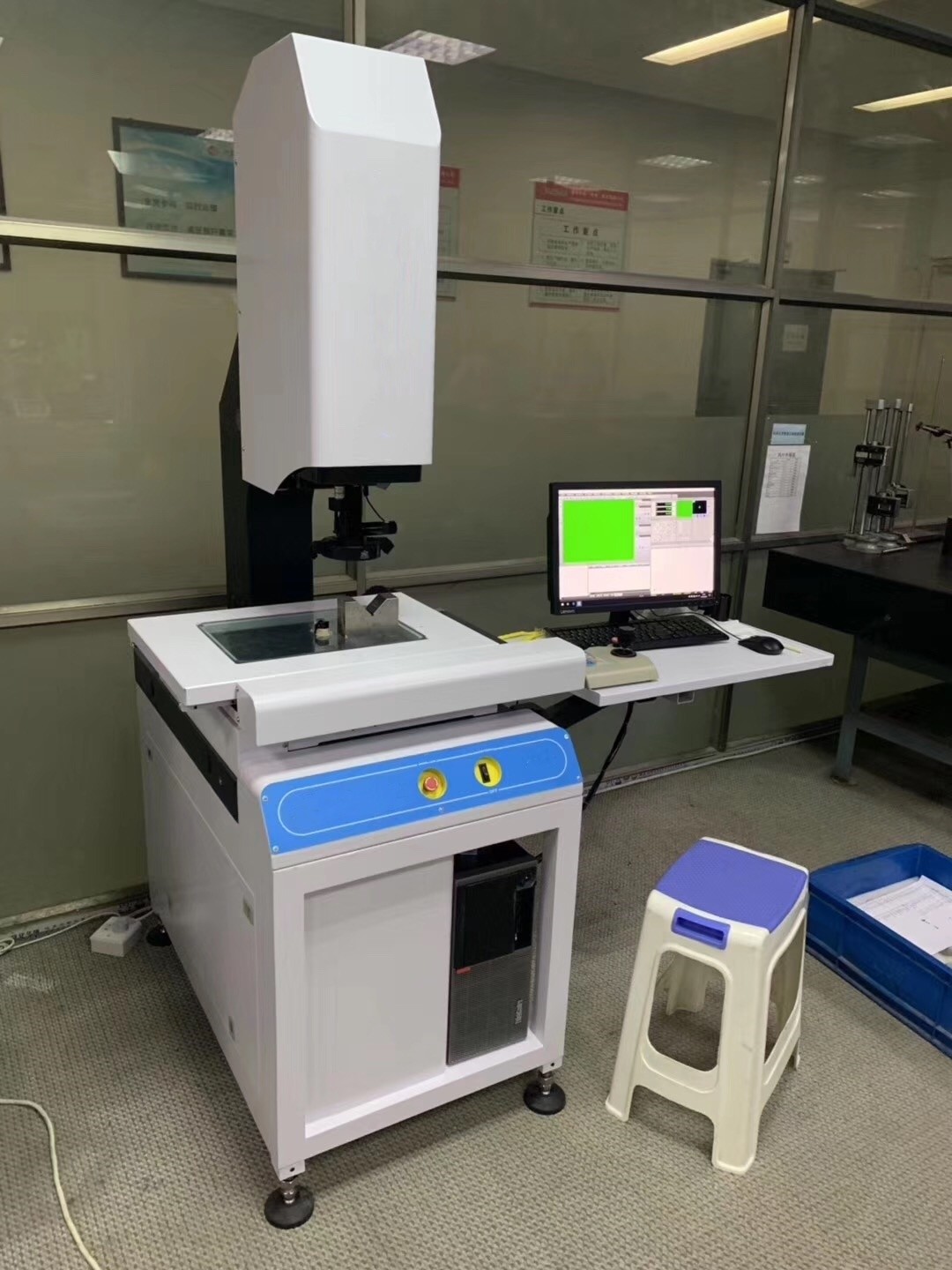

Product introduction: | The image measuring instrument can accurately measure points, lines, circles and other elements, and has a powerful report output function, which is especially suitable for measuring a wide range of products in large quantities.
Widely used in machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision hardware, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, computers (computers), liquid crystal televisions (LCD), printing Circuit boards (circuit boards, PCB), automobiles, medical equipment, clocks, instruments, and other industries. |
Measurement object: | LCD, FPC, PCB, circuit boards, screws, springs, watches, watches, meters, connectors (connectors, terminals), gears, cams,
threads, radius templates, thread templates, wires and cables, tools, bearings, hardware , Stamping parts, screens, test screens,
cement screens, mesh panels (steel mesh, SMT template), etc.
Measuring element:
Length, width, height, hole distance, spacing, Pin spacing, thickness, arc, diameter, radius, groove, angle, R angle, etc. |

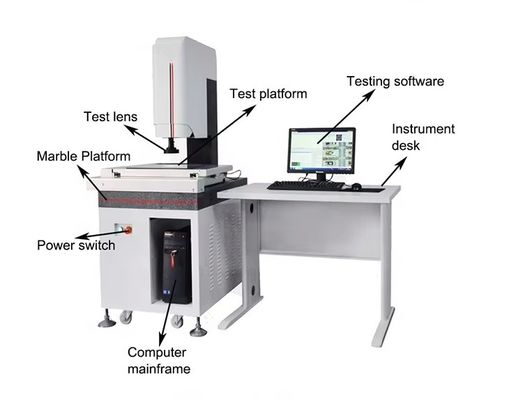

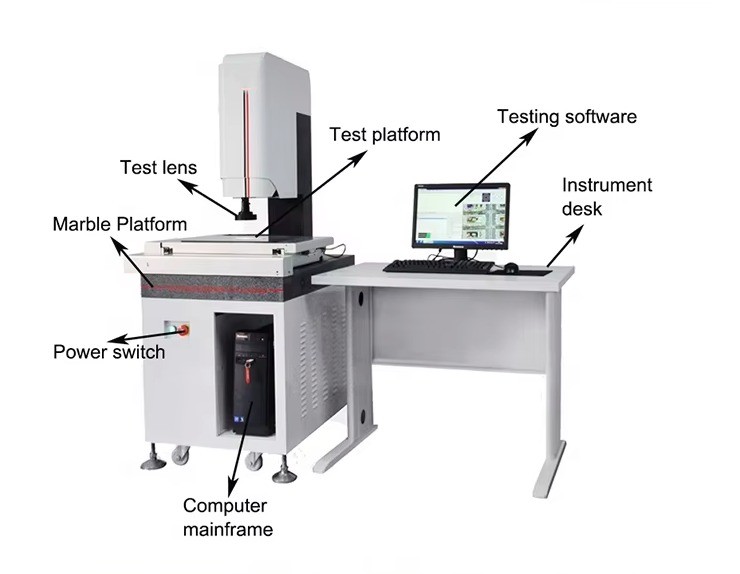

The image measuring instrument body and application features: | 1. The mobile device breaks through the transmission design to achieve stable and fast movement.
2. The column and base are made of high-precision granite structure, which is stable and reliable.
3. Equipped with SBK-E multi-function measurement software to meet different measurement needs.
4. DXF files can be imported for quick detection.
5. Measurement data can be imported into Word, Excel, and Auto CAD.
6. Graphical output function, easy to output test results.
7. X.Y axis precision cross roller guide to ensure machine accuracy and service life.
8. Z-axis adopts silver linear guide rail to ensure stable Z-axis focus and solve secondary focus and image measurement accuracy.
9. High-definition lens and high-resolution CCD for high-definition measurement of products.
10. The industry's advanced card position lens, easy to achieve magnification switching. |
Parameters: | X ,Y measure accuracy (μm): 3.0+L/150
Z measure accuracy(μm): 5.0+L/100
X,Y Axle Run speed: 0-200mm/S(selection)
Z Axle Run speed: 0-100m/S(Selection)
Repeated accuracy(mm): 0.005
Operation Mode: software
Grating Ruler: 0.001mm Glass Rating
X,Y Axle Guide Rail:Domestic precision cross-anti-dislocation guide
Z Axle Guide Rail:Taiwan” Shangyin” H grade precision linear guide
Z Axle lead screw:Taiwan TBI ” grinding ball screw
Power: 220V/50Hz/3A
Working condition: Temperature 20 ℃ + 2 ℃, the temperature change < 2 ℃ / h, humidity 30~80%
Special table for video equipment: Built-in switching power supply, controller, motor driver, power control switch, indicator
light, emergency stop switch, moving roller |
