Home /Products/Rubber Testing Equipment/Plug Line Voltage Drop Tester, this Instrument Is Suitable For Measuring The Voltage Drop At Non-replaceable Plug Pins And Connection Plug Lead Wires And Other Connection Points

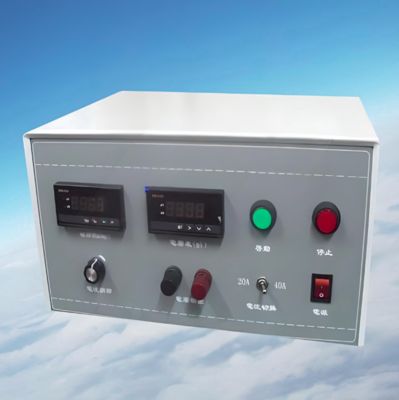

Plug Line Voltage Drop Tester, this Instrument Is Suitable For Measuring The Voltage Drop At Non-replaceable Plug Pins And Connection Plug Lead Wires And Other Connection Points

1 Set
MOQ
US$2000-$30000
Price
Plug Line Voltage Drop Tester, this Instrument Is Suitable For Measuring The Voltage Drop At Non-replaceable Plug Pins And Connection Plug Lead Wires And Other Connection Points
Features Gallery Product Description Chat Now
Features
Specifications
Input Voltage: AC220V+10%, 50Hz
Voltage Drop Range: 0 To 20mV
Working Current: Adjustable From 0 To 40A At Wil
Voltmeter Accuracy: +1%+3 Characters
Ammeter Accuracy: +1%+3 Digits
Highlight:

plug line voltage drop tester

,

voltage drop tester for plug pins

,

rubber testing equipment with warranty
Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Model Number: CF8331
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T, Cash.L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5 units per month
Product Description

This instrument is suitable for measuring the voltage drop of non-replaceable plug pins and connection plug lead-out wires and similar connection ports, thereby judging the quality of the connection ports. It can also be used to check the disconnection of plug wires after completing the bending test times specified in the standard. This instrument features adjustable high current output, micro-voltage testing and digital tube display. Test standards such as GB2099, UL817, VDE0620, and IEC884, etc. Ii. Technical Parameters



Input voltage: AC220V+10%, 50Hz

Working current: Adjustable from 0 to 40A at will

Voltage drop range: 0 to 20mV

Voltmeter accuracy: +1%+3 characters

Ammeter accuracy: +1%+3 digits
