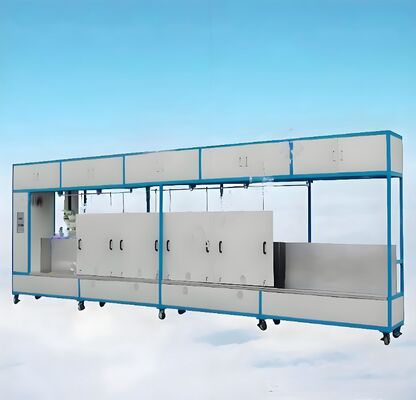

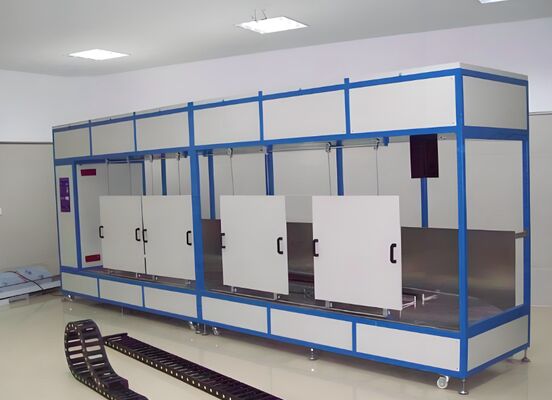

Mine Cable Bending Testing Machine Is Applicable To The Testing Of The Bending Performance Of Mining Cables

1 Set
MOQ
US$2000-$30000
Price
Mine Cable Bending Testing Machine Is Applicable To The Testing Of The Bending Performance Of Mining Cables
Features Gallery Product Description Chat Now
Features
Specifications
The Radius Of The Sample Bending Fixture:: R150±10mm, 200±10mm, And R250±10mm
Test Speed:: Adjustable From 0.1 To 1m/s
Sample Length:: For Type 05, Samples Can Be Made In Lengths Of 2M, 3M, 4M And 5M
Counter:: Continuously Set From 1 To 999999
Maximum Stroke:: 800MM
Drive Structure:: AC Reduction Motor + Chain Drive
Highlight:

mining cable bending tester

,

cable bending performance machine

,

mine cable testing equipment
Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Model Number: CF8464
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T, Cash.L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5 units per month
Product Description

It is applicable to the testing of the bending performance of mining cables and complies with the requirements of Article 5.8.8 (Appendix D) of GB12972.1.

The radius of the sample bending fixture: R150±10mm, 200±10mm, and R250±10mm can be replaced.

Test speed: Adjustable from 0.1 to 1m/s.

Sample length: For type 05, samples can be made in lengths of 2M, 3M, 4M and 5M. Type 010 can be used to test samples of 2, 3, 4, 5, 6, B, and 10M in length

Optional; Different models have different prices.

Alarm detection: Open circuit between power and control wire cores, short circuit between power and control wire cores, with corresponding alarm indications and buzzer prompts.

Counter: Continuously set from 1 to 999999. It can automatically stop when the count reaches the set value. Maximum stroke: 800MM.

Drive structure: AC reduction motor + chain drive.

Test power supply: AC220V/50Hz.
