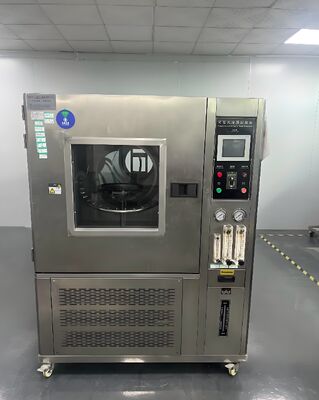

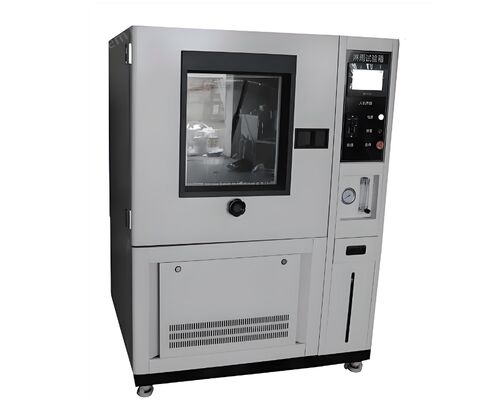

Box-Type Rain Test Machine Product Execution Standards: GB2423.38-90, GB5170.20-90, GB4208-93, IPX4 Waterproof Test Method

1 Set
MOQ
US$2000-$30000
Price
Box-Type Rain Test Machine Product Execution Standards: GB2423.38-90, GB5170.20-90, GB4208-93, IPX4 Waterproof Test Method
Features Gallery Product Description Chat Now
Features
Specifications
Radius Of The Water Spray Ring:: 400mm
Aperture Spacing:: 50mm
Water Spray Aperture:: Φ0.1mm
Swing Pipe Diameter:: Φ16mm
Number Of Openings:: 25
The Average Water Flow Velocity Qv1 Per Hole Is: 0.07L/min
Swing Speed:: Approximately 12 Seconds For Each Swing (2×600)
Highlight:

box-type rain test machine

,

IPX4 waterproof test equipment

,

cable testing rain simulation device
Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Model Number: CF8481
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T, Cash.L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5 units per month
Product Description

Product execution standards: GB2423.38-90, GB5170.20-90, GB4208-93, IPX4 waterproof test method
Swing amplitude of the swing pipe: The swing pipe swings 600 on each side of the vertical line, totaling approximately 1200
Radius of the water spray ring: 400mm
Water spray aperture: Φ0.1mm 4. Aperture spacing: 50mm
Swing pipe diameter: Φ16mm
6. Number of openings: 25
The average water flow velocity qv1 per hole is 0.07L/min
The equipment is equipped with a flowmeter, and the total water flow rate is approximately 1.8L/min
Swing speed: Approximately 12 seconds for each swing (2×600)
The water spraying time can be set, with a setting range of 0 to 99h, 99m, and 99s. Chamber dimensions (mm) : 800×800×800(depth × width × height). Inner tank material: SUS3042B high-grade stainless steel.
Shell material: Cold-rolled steel plate treated for rust prevention and then electrostatically sprayed with plastic
