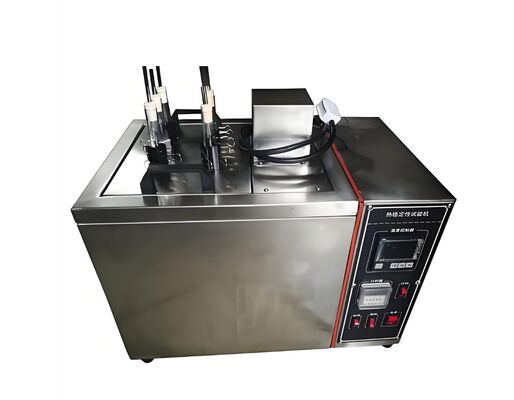

Thermal Stability Testing Machine Insulation And Sheath Tests Of Polyvinyl Chloride Mixtures Applicable To Wires And Cables.

1 Set
MOQ
US$2000-$30000
Price
Thermal Stability Testing Machine Insulation And Sheath Tests Of Polyvinyl Chloride Mixtures Applicable To Wires And Cables.
Features Gallery Product Description Chat Now
Features
Specifications
Temperature Range:: Room Temperature To 250℃.
Timer:: 0 To 99.99 Seconds.
Heater Power:: 1.25KW
PH Test Paper:: 1 To 7PH
Temperature Resolution: : 0.1℃
Working Power Supply:: AC220V/50Hz
Highlight:

Thermal stability testing machine for cables

,

PVC insulation testing equipment

,

Cable sheath testing machine
Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Model Number: CF8485
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T, Cash.L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5 units per month
Product Description

I. Standards:
It is made in accordance with the GB/T2951.7 standard "Thermal Stability Test for Insulation and Sheath", and complies with UL758, UL1581, UL62, ASTM, GB-1690, and 1EC811 test standards.
Ii. Uses
Insulation and sheath tests of polyvinyl chloride mixtures applicable to wires and cables.
Temperature range: Room temperature to 250℃.
3. Timer: 0 to 99.99 seconds.
5. Heater power: 1.25KW
7. Outer box dimensions: 420 (length) ×200 (width) ×250mm (height)
8. Internal dimensions: 3000ml
9. Glass tube: 110mm in length, 5mm in outer diameter, 4mm in inner diameter, with one end sealed
10. PH test paper: 1 to 7PH
2. Temperature resolution: 0.1℃
4. Working power supply: AC220V/50Hz
6. Test oil: 2# lubricating oil and insulating oil are used. (Self-prepared
