Home /Products/Cable Testing Equipment/Semiconductor Volume Resistance Tester Is Applicable To Measure The Volume Resistivity Of Rubber And Plastic Semiconductive Materials Used In Wires And Cables

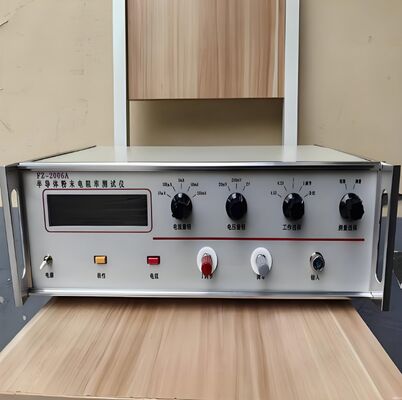

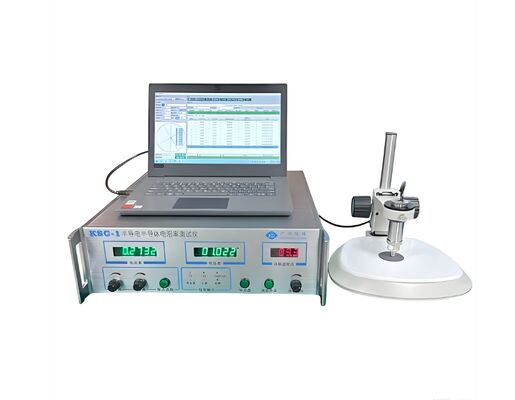

Semiconductor Volume Resistance Tester Is Applicable To Measure The Volume Resistivity Of Rubber And Plastic Semiconductive Materials Used In Wires And Cables

1 Set
MOQ
US$2000-$30000
Price
Semiconductor Volume Resistance Tester Is Applicable To Measure The Volume Resistivity Of Rubber And Plastic Semiconductive Materials Used In Wires And Cables
Features Gallery Product Description Chat Now
Features
Specifications
Dc Power Supply:: Adjustable Voltage From 0 To 5000V
Ammeter:: 0-20mA
Current Electrode:: 20mmx70mm
Voltage Electrode:: Φ1.0mm
Electric Anode Measurement Range:: 0~10°2
The Pressure Of The Potential Electrode Along The Width Of The Test Piece:: 65N/M
Insulating Board Size:: 80mmx180mm
Highlight:

semiconductor volume resistance tester

,

cable testing equipment for resistivity

,

plastic semiconductive material tester
Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Model Number: CF8487
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T, Cash.L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5 units per month
Product Description

Wiring diagram of the test quantity device
(1) Insulating board (2) test piece (3) current electrode (4) potential electrode (5) voltmeter (6) ammeter
It is applicable to measure the volume resistivity of rubber and plastic semiconductive materials used in wires and cables, and complies with the test method of GB/T3048.3 "Volume Resistivity of Semiconductive Rubber and Plastic Materials"
Dc power supply: Adjustable voltage from 0 to 5000V
Ammeter: 0-20mA
Current electrode: 20mmx70mm
Voltage electrode: Φ1.0mm
Electric anode measurement range: 0~10°2
The pressure of the potential electrode along the width of the test piece: 65N/M
Insulating board size: 80mmx180mm

Tag:

cable testing machine

wire testing machine

wire testing equipment
