Home /Products/Cable Testing Equipment/Digital Display Insulation Resistance Tester

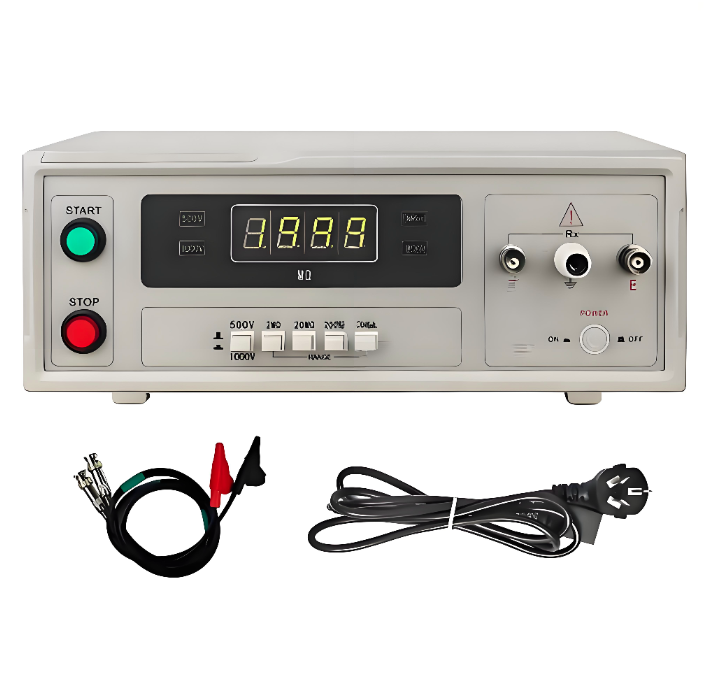

Digital Display Insulation Resistance Tester

1 Set
MOQ
US$2000-$30000
Price
Digital Display Insulation Resistance Tester
Features Gallery Product Description Chat Now
Features
Specifications
Voltage Measurement Range:: 10V-1000VDC
Voltage Resolution:: 1V
Voltage Accuracy:: 3%
Resistance Measurement Range:: 10kQ-10122
Electrical Anode Measurement Accuracy:: 3% (≤104 M ³) 8% (>104 M ³)
Resistance Upper Limit Setting:: 1m ² - 106m ²
Highlight:

digital insulation resistance tester

,

cable testing equipment with display

,

insulation resistance meter digital
Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Model Number: CF8507
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T, Cash.L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5 units per month
Product Description

Voltage measurement range: 10V-1000VDC

Voltage resolution: 1V

Voltage accuracy: 3%

Resistance measurement range: 10kQ-10122

Electrical anode measurement accuracy: 3% (≤104 m ³) 8% (>104 m ³)

Resistance upper limit setting: 1m ² - 106m ²

Performance characteristics

The test voltage, resistance and time are displayed. The test voltage can be set arbitrarily. The test insulation resistance range is automatically converted. The upper and lower limits of the resistance can be set arbitrarily

Power supply requirements: 198V-242VAC, 47.5Hz -52.5Hz

Overall dimensions: 326×102×345 (mm)

Weight: 6Kg

Tag:

cable testing machine

wire testing machine

wire testing equipment
