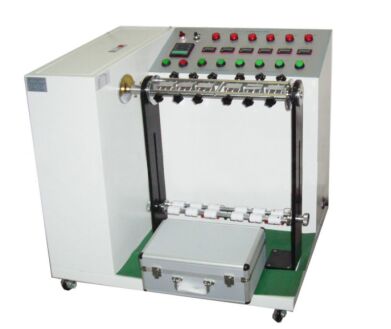

Six-Group Swing Testing Machine This Machine Is Specifically Designed To Test The Folding Strength Of DC Cables

This machine is specifically designed to test the folding strength of DC cables, headphone cables, USB cables, plug lead-out cables and wires. The method is to fix the test material on the fixture and apply a certain load. During the test, the fixture will swing left and right. After a certain number of times, check the breakage rate. Or when it cannot be powered on, check its total number of swings. This machine can automatically count. When the test material is bent to the point where the wire breaks and power cannot be applied, it can automatically stop the operation.
Compliance with standards: It complies with GB2099, UL817, and VDE standards for general testing.
Technical parameters
Grips: 6 sets
The swing Angle Flexing angles are adjustable at 45°, 60° and 90°
The swing speed Flexing speed is adjustable from 10 to 60 times per minute
Auto-counter: 6, counting separately
Six loads of 50, 100, 200, 300 and 500g each
Volume Dimension(W×D×H) : 86×51×81cm
