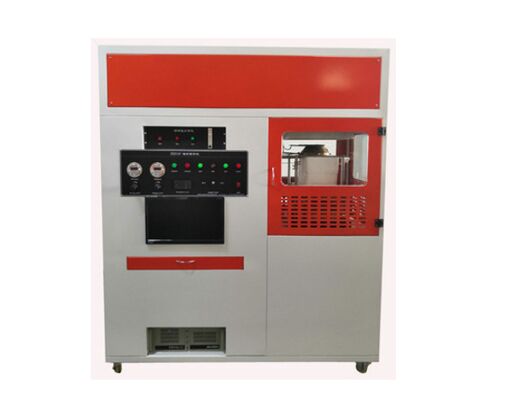

Cone Calorimeter It Complies With The Test Methods Stipulated In The Standards Of GB/T16172-2007

I. Equipment Standards:

It complies with the Test methods stipulated in the standards of GB/T16172-2007 "Test method for heat release rate of building materials" and ISO5660-1:2002 "Test Method for Heat Release Rate of Building Materials".

Ii. Scope of Application
The oxygen consumption calculated based on the oxygen concentration in the gas flow of combustion products and the heat release rate of combustion products during combustion. The heat release rate of materials is also the most important parameter in the combustion performance of materials. Accurate measurement of the heat release rate during the combustion process of materials is extremely important for predicting fire hazards and flame retardant prevention treatment.

Iii. Working Conditions:
Working environment temperature: 0℃-50℃
2. Working environment humidity: <80%
3. Power supply: 380V±50%,50Hz±2%

Iv. Main Performance Parameters
1. Radiation cone: Heating power: 5Kv, radiation intensity: 100Kw/m², equipped with three thermocouples for temperature measurement.
2. Exhaust system: It is composed of a centrifugal fan, a smoke collection hood, the intake and exhaust pipes of the fan, and an orifice plate flowmeter
The maximum capacity of the sample box: 100mm*100mm*50mm or more.
3. Exhaust volume: 0.012m³/s to 0.035m³/s (adjustable
4. Timing value resolution: 1S error <1s/n
5. Oxygen analyzer: Measuring range: 0-25%
6. Equipped with a sampling pump and a smoke and dust filter.
7. The gas flow rate adopts imported high-quality flow controllers
8. Ignition voltage: 220V, dual electrodes, ensuring safety during the test.
9. Smoke exhaust flow: The smoke exhaust fan adopts frequency conversion control, which can automatically adjust the smoke exhaust flow within the range of 0.012m³/s to 0.035 m³/s.
10. Control System: It adopts the Detection control program and the ZWH4500 acquisition control card, which can achieve automatic data acquisition and processing, data storage and output of measurement results.
11. The equipment is controlled in both manual and automatic modes and can be switched to manual operation.
12. The equipment is equipped with universal casters, making it convenient for users to move the device.
13. Exhaust system: Variable frequency fans are used to control the exhaust flow, and automatic control is achieved through a microcomputer. The integrated orifice plate flowmeter measures the exhaust flow, ensuring high accuracy of the exhaust flow.
14. Weighing device: It adopts high-precision weighing sensors with fast response time, weighing accuracy reaching 0.1g and resolution of 0.01g
15. Imported diaphragm pump, flow rate: 33L/min, vacuum degree: 700 MMHG, pressure: 2.5 bar.
16. The filter head of the imported smoke and dust filter is composed of solid PTFE, with 0.5umPTFE filter material inside.
17. The filter head of the imported moisture filter is composed of solid PTFE, and the liquid at the bottom can be discharged by a peristaltic pump.
18. Imported Taikang compression-type condenser, cooling capacity 320kJ/h, dew point stability 0.1 degree, static dew point change 0.1K, protection grade IP20.
19. Instrument control System: It adopts computer control and data processing. The computer measurement and control system mainly consists of measurement and control software, hardware, computers, printers, etc.
20. Measurement control software: It can operate under multiple operating systems of Windows. The test data is managed in a database manner, completing the data collection and processing of the experiment, data saving and output of the measurement results, and automatically saving all test data.
21. It provides multiple report printing interfaces, allowing users to edit reports in any format as needed and print them out.
21. The software package also includes other tool software, such as debugging toolboxes, batch processing programs, etc.
23. The filter head of the imported moisture filter is composed of solid PTFE, and the liquid at the bottom can be discharged by a peristaltic pump.
24. Imported Taikang compression-type condenser, cooling capacity 320kJ/h, dew point stability 0.1 degree, static dew point change 0.1K, protection grade IP20.
25. Instrument control System: It adopts computer control and data processing. The computer measurement and control system mainly consists of measurement and control software, hardware, computers, printers, etc.
26. Measurement control software: It can operate under multiple operating systems of Windows. The test data is managed in a database manner, completing the data collection and processing of the experiment, data saving and output of the measurement results, and automatically saving all test data.
27. It provides multiple report printing interfaces, allowing users to edit reports in any format as needed and print them out.
28. The software package also includes other tool software, such as debugging toolboxes, batch processing programs, etc.
Brand black and white laser printer.
29. Equipment accessories and technical data
30. Complete instrument configuration, 220V/16A (3000W) 5-meter power cord, 24-hole 6-position socket, and 3 power strips with leakage protection.
31. One complete set of materials that come with the instrument (including the instruction manual, maintenance manual, installation condition description, factory test report of the instrument, etc.).
32. Dimensions: Height 2000mm* Length 1600mm* width 700mm (including the box 1.9*0.9*2.2m)
33. Weight: 480kg
