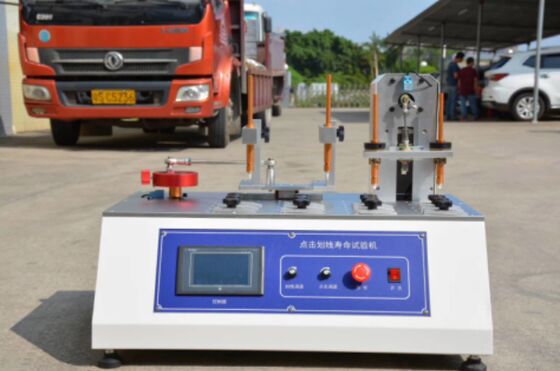

Click On The Line Marking Machine Used To Conduct Point And Write Life Tests On Touch Screens

I. Overview of This Machine:

The contact life testing machine is a device used to conduct point and write life tests on touch screens. This machine uses a mechanical structure to drive weights to generate a standard and constant pressure, simulating point and write life tests on products. It can also replace the test head with a pencil from Zhonghua HB to test the hardness of the product's shell. The test items include glue hardness test, surface paint hardness test, and paint adhesion test. This machine is equipped with dual-head pressure options, adjustable speed, adjustable stroke, and adjustable stop numbers, etc.

Ii. Main Technical Parameters
Main technical parameters
Test stations: 2 for clicking and 2 for marking
Workbench dimensions: 750mm×350mm
Travel range: 100mm for clicking, 0-60mm for marking
Test power: AC speed-regulating motor
Test head: Teflon or Chinese pencils with a standard hardness of HB
Motion mode: Speed-regulating motor
Test speed range: 0.25-2 seconds per time
Two marking rods
Click two rods
The machine can be preset to stop automatically after measuring the number of times: 0- 99999,999 times
