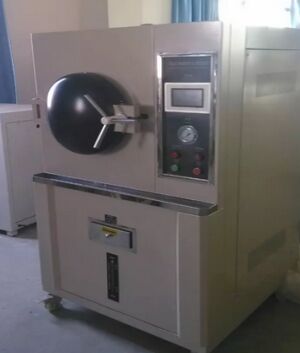

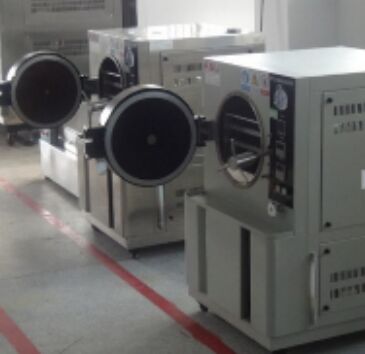

High Pressure Acceleration Test Chamber Used To Test The Moisture Resistance Of Semiconductor Packaging

I. Overview
The PCT high-voltage accelerated test chamber is used to test the moisture resistance of semiconductor packaging. The products to be tested are placed under harsh temperature, humidity and pressure conditions. Moisture can seep into the package along the colloid or the interface between the colloid and the lead frame. Testing the sealing performance of multi-layer circuit boards, photovoltaic modules,EVA,IC,LED,LCD, magnetic materials, polymer materials and other products, as well as the pressure resistance and air tightness of their products.
Ii. Product Parameters
Controller: Microcomputer saturated steam temperature + time + pressure display independent controller
Resolution, temperature: 0.1, pressure: pointer type 0.1
Control stability: Temperature: ±0.5℃, humidity: 100%
Inner box material :SUS316# stainless steel
Outer box material: High-grade steel plate with baked paint or stainless steel (as per customer's choice)
Iii. Equipment Dimensions (cm) :
Internal dimensions (W×H×D)mm: Φ350×450
Outer box dimensions (W×H×D)mm: 850×1000×1550
Operating temperature: 121℃ 132℃ (Special selection for 143℃
Operating humidity: 100% RH saturated vapor humidity
Operating vapor pressure (absolute pressure) : 1 ambient atmosphere +0.0Kg/cm ² - 2.0Kg/cm ²; (3.0Kg/cm ² is a special specification.
Circulation mode: Natural convection circulation of water vapor
Safety protection devices: Water shortage protection, overpressure protection (with automatic/manual water replenishment function, automatic pressure relief function)
Accessories: Two layers of stainless steel partitions
High-temperature and high-humidity accelerated aging chamber, high-temperature and high-humidity accelerated aging test machine power supply: AC220V, 50/60Hz/AC380V, 50/60Hz
Humidity range :100%RH saturated vapor
Pressure range: Gauge pressure +0.2 to 2.0kg/cm ² pressurization time: approximately 45 minutes
Gauge pressure +0.2 to 3.5kg/cm ² pressurization time :55 minutes
Circulation mode: Natural convection circulation of water vapor
Four, Equipment Features:
It has an automatic water replenishment function and will automatically replenish water when the water level is too low during the test.
The test process automatically runs until completion and is easy to use.
Temperature control: The LED digital temperature controller can precisely set, control and display the test temperature
As shown.
u timer: LED digital timer, which starts timing only when the temperature inside the pot reaches a certain level to ensure the experiment is complete.
The precise pressure/temperature gauge displays the pressure and relative temperature inside the pot at any time.
When in operation, the water dispenser automatically discharges unsaturated steam to achieve the optimal steam quality.
U-shaped one-piece molded silicone door gasket, with good air density and long service life.
The inner part of the u is polished, making it durable and beautiful
Five, high-temperature and high-humidity accelerated aging chamber, high-temperature and high-humidity accelerated aging testing machine complies with and meets the standards
u IEC60068-2-66
u JESD22-A102-B
u EIAJED4701
u EIA/JESD22
Safety protection: Temperature sensor detection protection, first-stage high-temperature protection, first-stage high-pressure protection, box door pressure limit, water tank water shortage alarm and power-off, temperature heater protection, humidity humidifier protection, second-stage high-temperature protection, second-stage high-pressure protection, third-stage emergency pressure relief protection, manual pressure relief protection, automatic pressure relief, etc.
