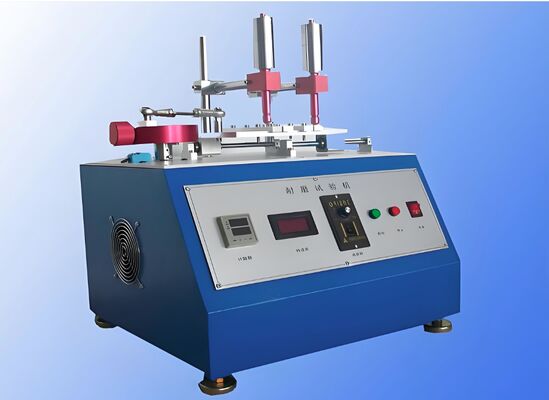

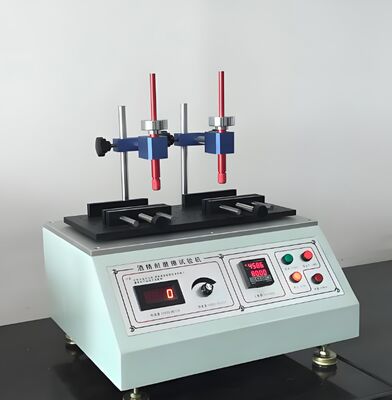

Wear Resistance Testing Machine It Is Mainly Used For Wear Resistance Tests On Product Surfaces, Suitable For Mobile Phones, MP3 Players, CD Players, Elastic Materials, PVC, Laptops,

It is mainly used for wear resistance tests on product surfaces, suitable for mobile phones, MP3 players, CD players, elastic materials, PVC, laptops, and various surface coating samples, as well as abrasion resistance tests on the surfaces and printed surfaces of all kinds of products. It is also known as a multi-functional alcohol eraser pencil friction testing machine.

1. This machine is driven by precision transmission components made in Japan, ensuring smooth operation and low noise.
2. It is equipped with three types of fixtures: pencil test fixture, eraser test fixture and alcohol test fixture.
Main technical parameters
The test load (g) is 10 to 500g
The maximum load-bearing capacity of the countertop is 5 kilograms
3. The moving range is 2 to 50mm or negotiable
4. Test speed: 3 to 180rpm/min
5. Speed input mode knob
6. Load-bearing ramps (g) : 10,20,50,100,200,500 g
7. Machine dimensions: 530×490×410mm
8. The machine weighs 50 kilograms
1∮220V,5A or as specified
Delivery
Standard Test eraser #7017R
Instrument application and features
This machine has the functions of adjustable speed and adjustable stroke. ACO-5600 Alcohol rubber Abrasion Testing Machine
2. It can display the current test speed and the number of tests.
3. Multi-functional counter, which can preset the number of tests to be conducted and automatically shut down when the required number is reached.
Specification parameters
1. Gauge: Two shafts (can be used for both rubber and alcohol friction)
2. Round-trip travel: Adjustable from 0 to 50mm (Travel customizable)
3. Speed: Adjustable from 3 to 180 per minute
4. Counter: 0-9999 times or 8-bit counting can be set arbitrarily
5. Friction hammer: Weighs 120g and can be adjusted forward and backward
6. Load weights: 10,20,50,100,200,500 g (customizable according to customer requirements)
7. Voltage: 220V
8. Machine dimensions: 450*380*500
