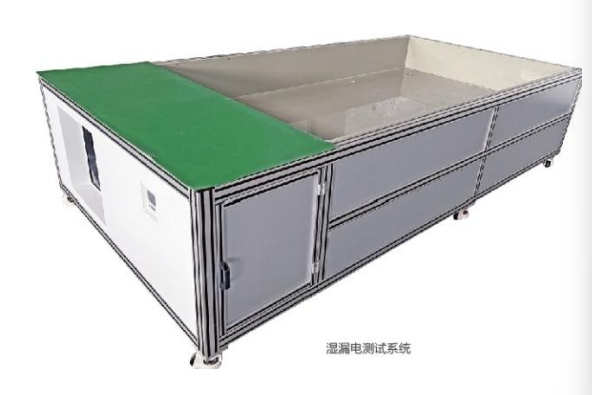

Wet leakage testing system

Wet leakage testing system





Meets standard: IEC61215-2 MQT15

Test purpose: To evaluate the insulation performance of components under humid working conditions, and verify whether moisture from rain, fog, dew, or snow can enter the working parts of the internal circuits of the components. If moisture enters there, it may cause corrosion, leakage, or safety accidents.



Product Features:
-The standard output of the device is DC2000V, which can be upgraded to a maximum of 2500V (customized). The standard output can meet the testing requirements of conventional 1500V system voltage components
-The power supply has a leakage current alarm function, and the alarm range can be set
-You can set the testing time, and the power system will automatically stop after the experiment ends
-Can be controlled through computer programs, automatically access data, and can be exported to Excel (optional)


Temperature controlled sink section:
-The temperature controlled sink is made of aluminum profiles and imported PP sheets, with a beautiful appearance
-PID automatic temperature control regulation, achieving the standard requirement of 22 ± 2 ℃ (the equipment has heating and cooling functions)
-The equipment is equipped with a conductivity tester as standard, which meets the requirements for resistivity testing in the standard
-Conductivity range: 0~1999us/cm ± 1.5% F · S, temperature testing range: 10.0~40.0 ℃± 1 ℃


Insulation and voltage withstand part:
-Refer to IEC61215 MQT03
