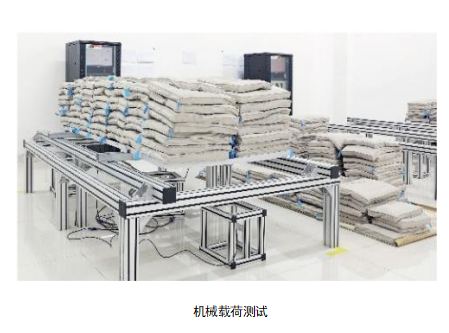

Static (sand pressure) mechanical load testing machine

Static (sand pressure) mechanical load testing machine



1. Meet the standard: IEC61215-2 MQT16
IEC61730-2 MST34
2. Test objective: To determine the ability of the component to withstand static loads such as wind, snow, or icing.
3. Main equipment parameters
The maximum size of the test sample is 2600 * 1400mm (customizable)
The maximum load of the testing equipment is ≤ 12500Pa
Pressure control accuracy ± 5% (adjusted according to the number of sandbags)
Circuit continuity system DC power supply: DC 60V/5A (power specifications can be customized according to customer needs), real-time monitoring of internal continuity of components
Sandbag specification 10.0 ± 0.25 Kg/bag
1-5 variables (optional)
Deformation accuracy ± 0.5mm
Variable range ± 200mm
4. Product features:
-Customized testing platform fixtures can be adjusted according to the sample installation method, while meeting the requirements of long frame installation, short frame installation, and installation hole installation.
-The deformation testing system is equipped with a maximum of 5 deformation monitoring points, and the monitoring points can be adjusted arbitrarily.
-Visual icon control and EXCEL output format, current output control, to meet the diverse needs of customers.
