Hail experiment apparatus

Hail experiment apparatus

Meets standard: IEC61215-2 MQT17

Test objective: To evaluate the component's ability to withstand hail impact.

Main technical parameters:

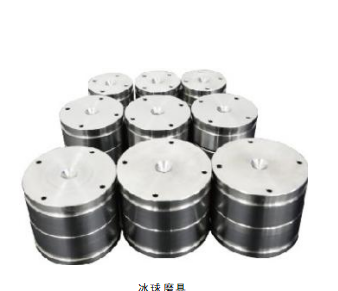

Ice hockey size 25mm; 35mm;45mm; 55mm;65mm; 75mm; (optional)

Ice hockey diameter accuracy ≤± 5%

Ice hockey quality accuracy ≤± 2%

Ice hockey speed control accuracy ≤± 5%

Accuracy of speed sensor ≤± 2%

Electronic balance 100g/0.1mg; 250g/0.1mg

2 refrigerators

Product Features:
1. The launch speed of ice hockey can be measured
2. The speed measurement unit is completed using two photoelectric sensors mounted in front of the launch tube, with a distance of 10cm between the two sensors. The speed is obtained using v=s/t and displayed in real-time. The speed testing device consists of three parts: detection sensors, high-speed response modules, and software modules. The system uses stable performance photoelectric sensors and programmable controllers to achieve speed measurement function.
