Bypass diode testing system

1 Set
MOQ
Negotiate
Price
Bypass diode testing system
Features Gallery Product Description Chat Now
Features
Specifications
Voltage: 220V
Temperature Resolution: 0.01℃
Power: 600W
Material: Stainless Steel
Temperature Fluctuations: ±0.5℃
Power Supply Voltage: AC220V ±10%, 50Hz
Product Volume: 100L
Temperature Range: -40 ℃ To+150 ℃
Equipment Weight: 350KG
External Dimensions: 780 * H1600 * D1450mm
Temperature Uniformity: ≤2.0℃
Temperature Deviation: ±2.0℃
Highlight:

bypass diode testing system with warranty

,

plastic testing equipment for diodes

,

bypass diode tester for solar panels
Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T,Cash,L/C
Supply Ability: 5 units per month
Product Description



Bypass diode testing system



Meets standard:

IEC61215-2 MQT18
IEC61730-2 MST 25



Test objective:

To evaluate the thermal performance of bypass diodes and their long-term reliability in dealing with harmful effects such as hot spots.



Product Features:
-The system automatically forms a fitting curve and determines the test results

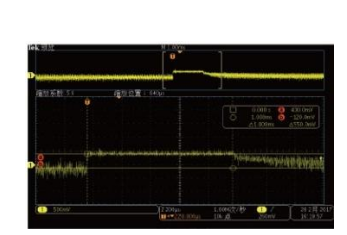

-The equipment is equipped with an oscilloscope to capture pulse curves





Main equipment parameters:

Pulse power supply:

current: 30A (customizable) deviation ± 2%
Pulse width: adjustable from 800 microseconds to 1100 microseconds

Positive constant current source

Current: 50A (customizable)
Current accuracy: 0.05%+0.5% F · S



Collection channel
Voltage acquisition: 8 channels
Temperature acquisition: 8 channels















Bypass diode testing system 0
Bypass diode testing system 1
1. Unique selling point: 12 years of professional research and development, only solving problems for customers. 2. Professional team: A technical research and development team with 12 years of experience, leading in professional knowledge and practical skills. 3. Quality assurance: The company strictly controls quality standards, meets customer standard requirements, and exceeds customer expectations. 4. Innovation ability: Develop products that meet customer needs, and years of experience make product development forward-looking and leading. 5. Competitive advantages: reliable quality, flexible and applicable equipment performance, reasonable equipment prices, high delivery speed, and guaranteed customer after-sales service. 6. Provide customized solutions for customers: fully understand customer needs, provide personalized solutions, and completely solve customer problems. 7. Reliability and credibility: The company operates steadily for a long time, winning the long-term trust of customers and solving their concerns.







Customer Photos
Bypass diode testing system 2
Bypass diode testing system 3
Bypass diode testing system 4
Packing & Delivery
Bypass diode testing system 5
FAQ
Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?
A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?
A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.
