Grounding continuity testing system

Grounding continuity testing system

Meets standard: IEC61730-2 MQT13

Test objective: To demonstrate that all exposed conductor surfaces of the component are mutually conductive and grounded.

Equipment Introduction:

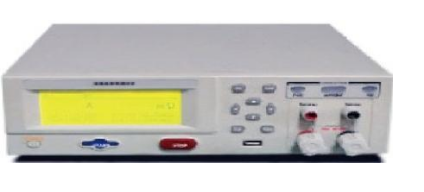

 Photovoltaic Grounding Resistance Tester is specially designed by our company for the grounding resistance characteristics of photovoltaic modules, also known as Grounding Continuity Tester. Programmable output test current DC 10~100A, testing range up to 0.01 μ Ω~600m Ω, stable testing, high accuracy. It has the function of testing line anomaly detection, with 3 sets of testing modes, and can realize programmable testing and sorting. RS485 interface is optional, and instrument networking can be easily achieved through MODBUS communication protocol. Compliant with the photovoltaic standard IEC61730.

Product Features:
-DC output of 10A~100A, capable of meeting the maximum current requirement of photovoltaic panels by three times
-Resistance test range 0.01 μ Q~600m Ω, stable reading
-Test line anomaly detection function to prevent misjudgment during testing
-Multiple interface configurations, suitable for supporting automatic testing systems
-Compliant with the photovoltaic standard IEC61730

display results
Current, resistance, time, and sorting information

Standard interface S232C interface RS485 interface (optional)
PLC interface (optional)

Communication Protocol Modbus

Other abnormal alarm prompts for testing lines

Power requirements and power

Voltage: 198VAC~240VAC
Frequency: 47Hz~63Hz Power: 650VA

Size and weight: 344 (length) x 280 (width) x 99 (height) Weight: 5.2kg

Attachment
Four terminal testing clip
