Impulse voltage generator

Impulse voltage generator

Meets standard: IEC61730-2 MST14

Test purpose: This test is used to verify the ability of solid insulation materials in components to withstand overvoltage caused by atmospheric environment. It also involves overvoltage states caused by low-voltage equipment switches.

Equipment Introduction:

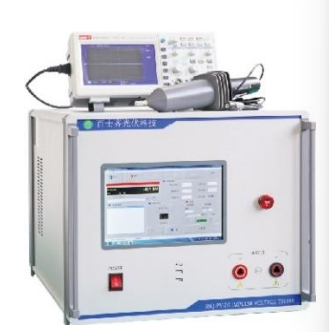

It is specifically designed for testing the pulse voltage of solar cell modules (solar panels). The generator can generate a surge voltage waveform of 1.2/50 μ s that meets the IEC60060-1/2 standard, and the voltage can reach 30KV, meeting the requirements of IEC61730-1/2 and EN61730-1 standards.

Pulse output voltage, adjustable ± 3% 2.0~30 KV
Voltage accuracy ≤ 3%
Voltage resolution 10V
Rise time 1.2 μ s ± 30%
Falling time 50 μ s ± 20%
Polarity positive/negative
Maximum energy storage of 100J
The charging time when reaching the maximum charging voltage is approximately 10 seconds
Internal load capacitance 4100 pF ± 10%

1 oscilloscope
Attenuation rod: attenuation ratio 1000:1 1 unit
Insulation protection level: 2 insulation pads
1 pair of insulated gloves
