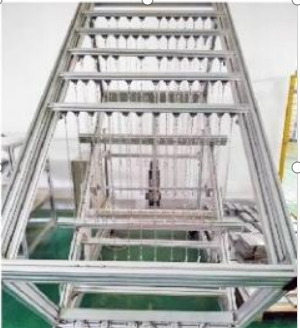

Uneven snow load testing system

Uneven snow load testing system

Meets standard: IEC 62938 ed.012020-05 Photovoltaic(PV)modules -Non-uniform snow load testing

Equipment function: When the component is installed outdoors, it is installed at a 37 ° angle to the ground. When encountering heavy snow weather, the surface of the component will accumulate thick snow. Due to the inclined installation of the component at a certain angle to the ground, the surface with the lowest inclination angle carries the maximum pressure, and the pressure on the component surface decreases upward with the component inclination angle; The test component is installed on an adjustable angle mounting surface, and there is a weight hanging platform at a certain distance parallel to the component mounting surface. The weights can be neatly stacked on the component surface, and the weight of the weights decreases upwards at the inclination angle of the component
And achieve the effect of uneven load.

Features:

1. Provide sufficient load unit modules, and the size of the load unit modules is designed and produced according to the size of the customer's test samples
2. Three displacement sensors are provided at the bottom of the device to monitor the displacement of the frame (the number of displacement sensors is variable)
3. The angle of the photovoltaic module installation bracket can be adjusted, and the quantity and quality of the load unit modules are configured at an angle of 37 °± 1 °
4. Device configuration to prevent the load unit from falling off due to the detachment of the frame
5. Attach polytetrafluoroethylene material to the bottom of the load module to prevent abnormal friction between the load unit and the glass surface of the photovoltaic module
6. Maximum tested photovoltaic module size: 2600 * 1400mm (customizable)
7. Provide customers with personalized software and hardware customization requirements
