Products Description
Purpose:

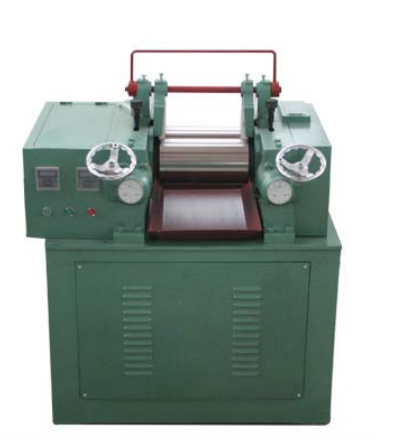

This machine is specifically designed for the rubber industry and plastic product mixing experiments. It has the characteristics of light weight, small size, simple structure, easy operation, low power consumption, and convenient use and maintenance.
Main technical parameters
1. Roller diameter: φ 160mm
2. Roller working face length: 320mm
3. Adjustment torque between rollers: 0-5mm
4. Roller speed ratio: 1:1.35
5. Rear roller speed: 12.06m/min
6. Front roller speed: 8.95m/min
7. One loading: 1-2 (kg)
8. Heating power: 3.3KW
9. Temperature range: Room temperature -230 ° C
10. Roller surface treatment: hard chrome plating on the surface
11. Gearbox model: BWO220-23-5.5Kw
12. Dimensions (length x width x height): 1120 x 9200 x 1300 (mm)
13. Whole machine weight approximately: 1T
Detailed configuration:
Roller group:
1. Type: The front and rear rollers are hollow.
2. Material: Cold hard alloy
3. Working surface hardness: HRC: 68-75
4. Copper tile
5. The bearing seat is made of cast iron (FC30), which is tempered and has excellent strength and precision.
6. The roller heating method is open. (Electric heating)
Base and rack
1. The base is made of profiles, which have undergone tempering treatment and mechanical processing.
2. The frame is made of cast iron (FC30) and processed after tempering treatment. Excellent strength and precision
Roller gap adjustment device
1. Adjustment range: 0.1-5mm
2. Composed of nuts, screws, and dials.
3. Distance adjustment method: Handwheel type
Rubber blocking plate group:
1. Type: Axial movable.
2. The blocking plate is made of aluminum.
Material tray:
1. Made of stainless steel plate.
Transmission mechanism:
1. Main motor: 5.5KW, speed 1440rpm.
Emergency braking device:
1. Type: Reverse braking.
2. Braking method: Pull rod.
Lubrication group:
1. Lubrication: Adopt dry oil lubrication method.
Electrical Control Group:
1. Control box: surface painted floor type.
2. Operation box: Control circuit for operation.
3. The wiring inside the machine is centralized by the manufacturer into the on-board junction box (excluding the main motor), and the supplier is not responsible for the connection wires between the main machine and the electrical box
