Home /Products/Environmental Test Chamber/DX8315A 9KW 380V Three Phase UV Aging Machine 16 OSRAM Lamps Laminated Glass Test Equipment

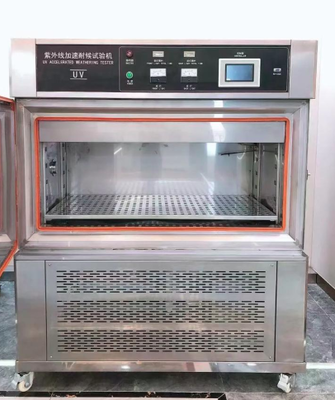

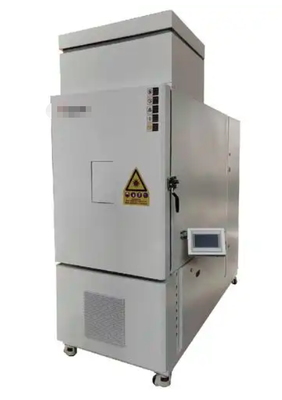

DX8315A 9KW 380V Three Phase UV Aging Machine 16 OSRAM Lamps Laminated Glass Test Equipment

1 Set
MOQ
USD 5000-15000 / Set
Price
DX8315A 9KW 380V Three Phase UV Aging Machine 16 OSRAM Lamps Laminated Glass Test Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Work Box Size: 1100mm × 1100mm × 1000mm
Test Size: 300 × 300mm
Test Quantity: 9pcs
Temperature Control Range: 45℃ ± 5℃
Light Source: OSRAM Ultra Vitalux 300W
Number Of UV Lamps: 16
Radiation Intensity: 900W/m² ± 100 W/m²
Sample To Light Source Distance: > 500mm
Testing Time: 2000h
Interference Sound: ≤ 75db
Fan Power: ≤ 25W × 4
Compressor Power: 2.5HP
Installation Power: 9KW
Power Supply: AC380V/50HZ, Three-Phase 5-Wire System
Standard: EEN ISO 12543-4-2011
Application: UV Aging Test For Laminated Glass
Highlight:

9KW UV aging machine

,

380V three phase test equipment

,

OSRAM lamps laminated glass tester
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Ecer
Certification: ISO 9001:2015, CE, EEN ISO 12543-4-2011
Model Number: DX8315A
Payment & Shipping Terms
Packaging Details: Export-grade plywood case with shock-proof foam insert, vacuum-packed UV lamps
Delivery Time: 15-30 working days after order confirmation
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50 Sets per Month
Product Description

DX8315A Industrial-Grade UV Aging Machine — 9KW 380V

The DX8315A Industrial UV Aging Machine is a robust, production-ready system powered by a 9KW installation on AC380V/50HZ three-phase 5-wire supply. Equipped with 16 OSRAM Ultra Vitalux 300W UV lamps and a powerful 2.5HP compressor, it delivers industrial-grade reliability for demanding laminated glass testing environments.

Key Features

  • ✅ 9KW installation power for industrial operation
  • ✅ AC380V/50HZ three-phase 5-wire power supply
  • ✅ 16 * OSRAM Ultra Vitalux 300W UV lamps
  • ✅ 2.5HP compressor for optimal cooling
  • ✅ 4 * ≤ 25W cooling fans
  • ✅ 900W/m² ± 100 W/m² radiation intensity
  • ✅ 1100mm * 1100mm * 1000mm work box
  • ✅ EEN ISO 12543-4-2011 compliant

Application

Built for heavy-duty laminated glass UV aging in manufacturing plants, commercial testing laboratories, and certification bodies requiring continuous high-throughput operation with industrial power infrastructure.

Tag:

environmental test equipment

uv irradiation test machine

uv aging test chamber
