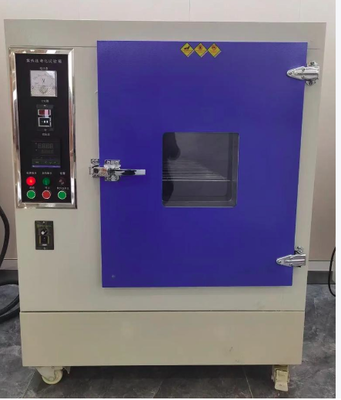

DX8315A UV Radiation Test Chamber 2.5HP Compressor 25W Fan 4pcs Glass Weathering Equipment

1 Set
MOQ
USD 5000-15000 / Set
Price
DX8315A UV Radiation Test Chamber 2.5HP Compressor 25W Fan 4pcs Glass Weathering Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Work Box Size: 1100mm × 1100mm × 1000mm
Test Size: 300 × 300mm
Test Quantity: 9pcs
Temperature Control Range: 45℃ ± 5℃
Light Source: OSRAM Ultra Vitalux 300W
Number Of UV Lamps: 16
Radiation Intensity: 900W/m² ± 100 W/m²
Sample To Light Source Distance: > 500mm
Testing Time: 2000h
Interference Sound: ≤ 75db
Fan Power: ≤ 25W × 4
Compressor Power: 2.5HP
Installation Power: 9KW
Power Supply: AC380V/50HZ, Three-Phase 5-Wire System
Standard: EEN ISO 12543-4-2011
Application: UV Aging Test For Laminated Glass
Highlight:

UV radiation test chamber with 2.5HP compressor

,

weathering equipment with 25W fan

,

environmental test chamber with glass panels
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Ecer
Certification: ISO 9001:2015, CE, EEN ISO 12543-4-2011
Model Number: DX8315A
Payment & Shipping Terms
Packaging Details: Export-grade plywood case with shock-proof foam insert, vacuum-packed UV lamps
Delivery Time: 15-30 working days after order confirmation
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50 Sets per Month
Product Description

DX8315A UV Radiation Test Chamber — Advanced Cooling System

The DX8315A UV Radiation Test Chamber features a robust cooling architecture with a 2.5HP compressor and four 25W low-power fans, ensuring stable thermal conditions throughout extended aging cycles. This design maintains the critical 45℃ ± 5℃ sample surface temperature even under maximum 900W/m² radiation load.

Key Features

  • ✅ 2.5HP compressor for primary cooling
  • ✅ 4 * ≤ 25W auxiliary cooling fans
  • ✅ 45℃ ± 5℃ precise sample surface temperature
  • ✅ 16 * OSRAM Ultra Vitalux 300W UV lamps
  • ✅ 900W/m² ± 100 W/m² radiation intensity
  • ✅ 1100mm * 1100mm * 1000mm work box
  • ✅ 2000h continuous operation
  • ✅ EEN ISO 12543-4-2011 compliant

Application

Optimized for temperature-sensitive laminated glass UV aging where thermal stability directly impacts test result reproducibility. Suitable for quality control labs and R&D centers requiring consistent, repeatable weathering data.
