Home /Products/Environmental Test Chamber/DX8315A EEN ISO 12543 UV Test System 9pcs Batch 9KW 380V Laminated Glass Aging Machine

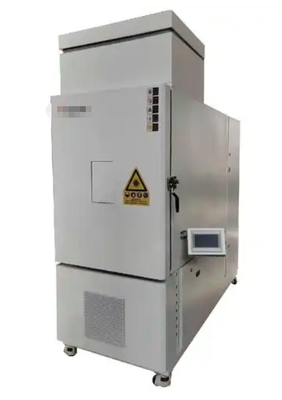

DX8315A EEN ISO 12543 UV Test System 9pcs Batch 9KW 380V Laminated Glass Aging Machine

1 Set
MOQ
USD 5000-15000 / Set
Price
DX8315A EEN ISO 12543 UV Test System 9pcs Batch 9KW 380V Laminated Glass Aging Machine
Features Gallery Product Description Chat Now
Features
Specifications
Work Box Size: 1100mm × 1100mm × 1000mm
Test Size: 300 × 300mm
Test Quantity: 9pcs
Temperature Control Range: 45℃ ± 5℃
Light Source: OSRAM Ultra Vitalux 300W
Number Of UV Lamps: 16
Radiation Intensity: 900W/m² ± 100 W/m²
Sample To Light Source Distance: > 500mm
Testing Time: 2000h
Interference Sound: ≤ 75db
Fan Power: ≤ 25W × 4
Compressor Power: 2.5HP
Installation Power: 9KW
Power Supply: AC380V/50HZ, Three-Phase 5-Wire System
Standard: EEN ISO 12543-4-2011
Application: UV Aging Test For Laminated Glass
Highlight:

DX8315A EEN UV test system

,

ISO 12543 laminated glass aging machine

,

9KW 380V environmental test chamber
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Ecer
Certification: ISO 9001:2015, CE, EEN ISO 12543-4-2011
Model Number: DX8315A
Payment & Shipping Terms
Packaging Details: Export-grade plywood case with shock-proof foam insert, vacuum-packed UV lamps
Delivery Time: 15-30 working days after order confirmation
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50 Sets per Month
Product Description

DX8315A EEN ISO 12543 Compliant UV Test System

The DX8315A UV Test System is a complete, standards-compliant solution for EEN ISO 12543-4-2011 laminated glass testing. With 9-specimen batch capacity, 9KW installation on 380V three-phase power, and 16 OSRAM 300W lamps, this turnkey system delivers everything needed for professional glass UV aging evaluation.

Key Features

  • ✅ EEN ISO 12543-4-2011 full compliance
  • ✅ 9-specimen batch capacity (300 * 300mm)
  • ✅ 9KW / AC380V/50HZ three-phase 5-wire
  • ✅ 16 * OSRAM Ultra Vitalux 300W UV lamps
  • ✅ 900W/m² ± 100 W/m² radiation
  • ✅ 2.5HP compressor + 4 cooling fans
  • ✅ 2000h testing time with timer
  • ✅ Complete turnkey delivery

Application

A turnkey UV aging solution for laminated glass manufacturers and testing laboratories requiring a complete, standards-compliant system. From installation to operation, the DX8315A provides everything needed for ISO 12543-4-2011 UV aging evaluation out of the box.

Tag:

environmental test equipment

uv irradiation test machine

uv aging test chamber
