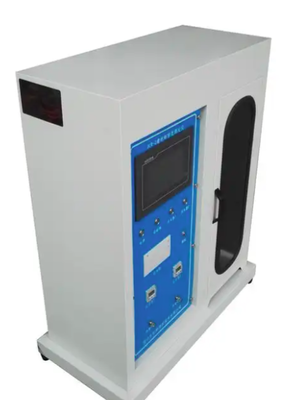

TTI-200 Touch Screen Tracking Index Tester IEC 60112 100V-600V Automatic Drop Counter for Plastics

1 Set
MOQ
USD 4200-6500 / Set
Price
TTI-200 Touch Screen Tracking Index Tester IEC 60112 100V-600V Automatic Drop Counter for Plastics
Features Gallery Product Description Chat Now
Features
Specifications
Test Standard: IEC 60112, GB/T 4207
Test Voltage: 100V-600V AC Adjustable
Drop Volume: 20 Mm3 (+3/-0)
Drop Height: 30-40mm
Drop Rate: 30±5 Drops/min (adjustable 12-48)
Electrode Material: Platinum, 5mm Diameter, 60 Degree Included Angle
Electrode Gap: 4mm (adjustable 3-6mm)
Test Solution: 0.1% NH4Cl Solution
Trip Current: 0.5A / 2s
Short Circuit Current: 1.0A
Control / Display: 7-inch Touch Screen HMI
Test Stations: Single Station
Power Supply: AC 220V 50Hz
Machine Weight: 65kg
Machine Dimension: 700x450x900mm
Highlight:

TTI-200 touch screen tracking index tester

,

automatic drop counter for plastics

,

IEC 60112 compliant plastic tester
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WINTEST
Certification: ISO 9001:2015, CE
Model Number: TTI-200
Payment & Shipping Terms
Packaging Details: Export-grade wooden case with shock-proof foam padding and waterproof film
Delivery Time: 7 working days for stock, 20-30 days for production
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 100 Sets per Month
Product Description

TTI-200 Tracking Index Tester (Comparative Tracking Index Tester) is a professional instrument designed to evaluate the tracking resistance of solid insulating materials under wet and contaminated conditions. It fully complies with IEC 60112, GB/T 4207 and is widely used in quality control laboratories, material R&D centers and third-party testing institutions.

Key Features

  • 7 inch touch screen HMI operation
  • Automatic drop counting and display
  • Test result storage and recall
  • Password protected parameter setting
  • Audible and visual test completion alarm

Technical Specifications

ModelTTI-200
Test StandardIEC 60112, GB/T 4207
Test Voltage100V-600V AC adjustable
Drop Volume20 mm3 (+3/-0)
Drop Height30-40mm
Drop Rate30±5 drops/min (adjustable 12-48)
Electrode MaterialPlatinum, 5mm diameter, 60 degree included angle
Electrode Gap4mm (adjustable 3-6mm)
Test Solution0.1% NH4Cl solution
Trip Current0.5A / 2s
Short Circuit Current1.0A
Control / Display7-inch touch screen HMI
Test StationsSingle station
Power SupplyAC 220V 50Hz
Machine Weight65kg
Machine Dimension700x450x900mm

Typical Applications

Suitable for tracking index testing of plastic materials, injection molded parts, insulation housings. The instrument is essential for manufacturers exporting electrical and electronic products to markets requiring IEC 60112, GB/T 4207, ASTM D3638 or UL 746A compliance.

Warranty and Service

12-month warranty, lifetime technical support, free operation training video and installation guide. Calibration certificate and CE declaration available on request.
