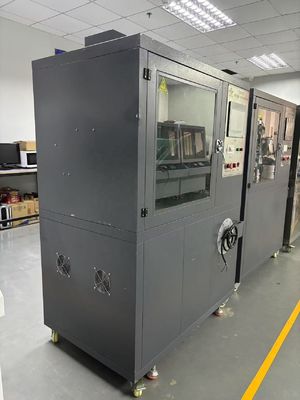

BDV-10G Insulation Breakdown Voltage Tester 10kV Step Test Mode for PCB Laminate Testing

BDV-10G Dielectric Breakdown Voltage Tester is a professional high-voltage instrument used to determine the dielectric breakdown voltage and dielectric strength of solid insulating materials. It fully complies with IEC 60243-1, IPC-TM-650 and is widely applied in material R&D, quality control and third-party testing laboratories.

Key Features

• Step voltage test mode
• Purpose built for PCB laminates
• Holding time programmable
• Dielectric strength calculation
• Audible breakdown alert

Technical Specifications

Typical Applications

Suitable for dielectric breakdown testing of PCB laminates, copper clad boards, prepreg materials. Essential for manufacturers exporting electrical and electronic products to markets requiring IEC 60243-1, GB/T 1408.1, ASTM D149 or IEC 60156 compliance.

Warranty and Service

12-month warranty, lifetime technical support, free operation training video and installation guide. Calibration certificate and CE declaration available on request.
