High Temperature Tunnel Furnace machine

1 Set
MOQ
US$2000-$30000
Price
High Temperature Tunnel Furnace machine
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM, OBM, Software Reengineering
Place Of Origin: Guangdong, China
Brand Name: CHENGFENG
Working Voltage: 380V ± 10% 3 φ 50Hz
Main Switch: 50A
Total Power: Approximately 20KW
Ammeter: One Set Of 300V
Highlight:

High Temperature Tunnel Furnace

,

High Temperature Tunnel Furnace machine

Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T,Cash,L/C,Western Union,MoneyGram
Supply Ability: 5 units per month
Product Description

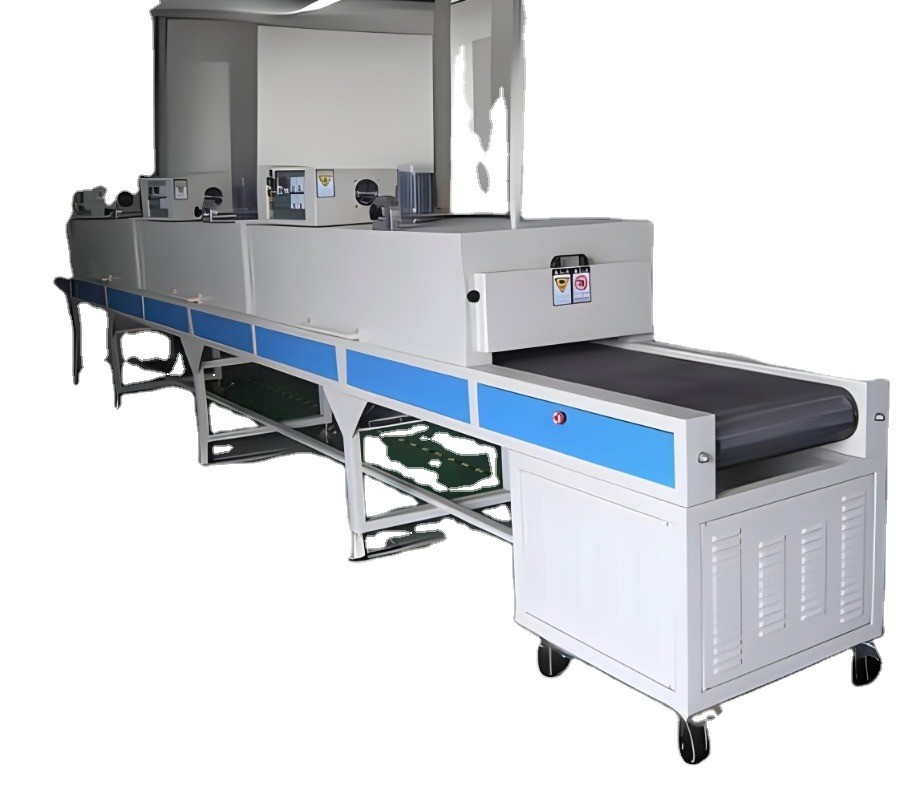

High Temperature Tunnel Furnace machine 0


Our services:
1. Ensure the high quality of the product.
2. Packaging can be done according to customer requirements and pictures can be attached before shipment.
3. Transport professional documents
4. Provide professional product consultation before sales, and we guarantee to answer any professional technical questions you may have within 48 hours; Provide timely product technical services after sales, and provide solutions within three working days.
5. Our engineers provide professional after-sales service
6. The warranty period is 12 months. During the warranty period, we are responsible for providing free maintenance, upkeep, and replacement of damaged and defective parts (under normal use) for the user's equipment. After the free warranty ends, service fees will be charged at your discretion.
7. Provide the fastest response to maintenance and assistance requests from users. After the user submits a maintenance request, ensure to provide professional technical support in the shortest possible time and in the fastest way possible.


2, Main structure of equipment
(1) Functional parameters:
Temperature range: room temperature+5 ℃ -200 ℃
Working temperature: 150 ℃ (adjustable)
Load capacity: ≤ 15kg/M2
(2) a. Transmission part: Adopting imported speed regulating motor, the speed is uniformly adjustable at 1-12 meters per minute, and the control speed is uniform and stable (with a stepless frequency converter speed of 2P). Equipped with a 120W imported speed regulating motor and a 50 type variable speed gearbox. Imported Teflon mesh belt. The conveyor belt is equipped with adjustable main and passive rollers before and after stepless speed regulation
b. Sheet metal for the outer body of the work area tunnel: One set of 1.5mm cold plate stamping and painting
c. Inner cavity of work area tunnel: One set of 1.2mm high-quality galvanized sheet
d. Body support frame: 4 "International Fangtong
e. Air supply system: circulating air supply motor
f. Insulation material: imported high-grade fiber glass cotton double-layer work area support plate: high-quality stainless steel
g. 2 sets of inlet and outlet baffles: The inlet and outlet of the heating zone are equipped with temperature resistant adjustment plates, which can be adjusted according to the specific size of the dried material, with an adjustable range of 20-450MM
h. Carrying crossbeams (2 pieces): made of square joints, with a set of 60 * 60 * 1500mm (symmetrical) brackets made of 40 * 60mm square joints Three temperature sensors are installed in the tunnel area to ensure temperature uniformity inside
4, Equipment electrical part
1) Main switch: 50A
2) Total power: approximately 20KW
3) Temperature controller (2 sets): Japanese RKC brand controller
4) PID self-tuning output, 6 sets of temperature detection sensors for temperature detection, displayed in the control box to ensure a constant temperature inside the furnace.
5) Working voltage: 380V ± 10% 3 φ  50Hz
6) Transportation motor: 500W permanent horizontal motor, with a reduction ratio of 1:80
7) Hair dryer: CY-100 model (3 units)
8) Speed regulation product: 500W frequency converter model (Delta),
9) Voltmeter: 50A per set
10) Ammeter: One set of 300V
5, Heating system
(1) Heater: Nickel chromium alloy heating tube to ensure baking effect.
(2) Temperature sensor: PT100 type thermistor (dry bulb)
6, Protective devices
(1) 1. Fault alarm prompt
(2) 2. Equipment overload protection

7, Tunnel heating line configuration list

Serial number


Equipment Name, Specification, Model, Component Description

1.

Tunnel heating line



 a Conveyor body



1. Wire body specifications




2. Conveyor type: continuous tunnel conveyor



3 Conveyor belt: imported Teflon belt




4. Rack: 40 * 60 square tube surface spray painted production



5. Sealing and baking paint board for the lower part of the line body in the upper and lower parts area



 Line drive and tensioning system



1. .Driving power: 1HP permanent horizontal motor with a 1:80 power installed under the machine head.



2. Speed regulation: Taiwan 1HP frequency converter model (SANJING) with adjustable line speed of 0.7-12M/mIN



3. Automatic tensioning device for mesh belt: spiral tensioning type

2.

heating zone



Heating furnace cover




Furnace specifications: total length L5000MM, outer width 800MM. Work area length 3000MM, width 600MM
20 heating tubes with a power of 1KW per unit



2.
There are two 1P vertical motors (Taiwan FUAN) at the top that support the 9-inch wind turbine for hot air circulation



3.
The outer plate of the furnace is made of 1.5mm cold plate baked paint



4. The inner plate of the furnace is made of 1.2mm steel plate



5. Insulation layer aluminum silicate wool (150MM)



6. The bracket is made of square tube (40 * 60)




7. Segmented configuration maintenance
8. Each section has a maintenance handle, which is convenient for maintenance and prevents products from getting stuck inside

3.

Heater:



1. Normal operating temperature of 200 degrees Celsius



2. Using dedicated infrared heating tubes



3. Using 40 * 60 square pipes as fixed brackets



4. Equipped with high-temperature connecting wires

  4.

  electric part



1. Temperature controller KTYB809



2. Over temperature protection instrument from Japan RKC, voltmeter, ammeter



3. PT100Temperature sensor PT100



4. Contactor Taiwan Shilin



5.Overheat relay Taian Taiwan



6.Intermediate relay Omron Japan



6.Heating rod infrared 1KW/piece (customized)



7.Terminal block NIM (Japan)



8. Sound and light alarm Taiwan (Taiwan)



9.Heater protection Chint
