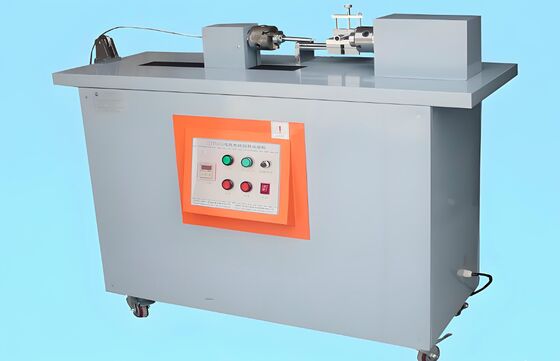

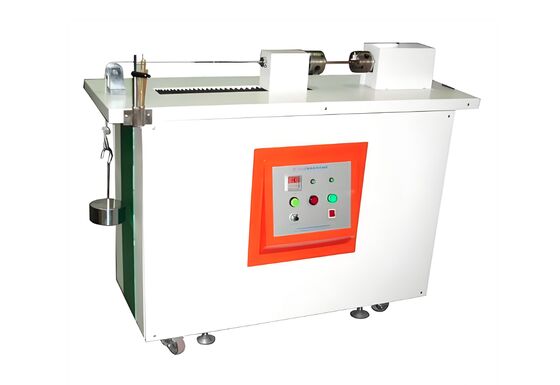

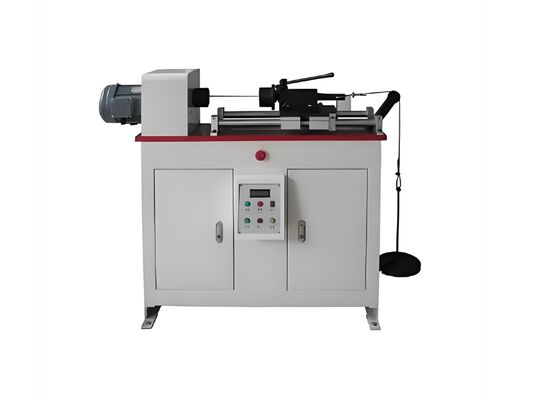

The wire winding and adhesion test device complies with the GB4909.7-85 standard "Test Methods for Bare Wires - Winding Test"

1 Set
MOQ
US$2000-$30000
Price
The wire winding and adhesion test device complies with the GB4909.7-85 standard "Test Methods for Bare Wires - Winding Test"
Features Gallery Product Description Chat Now
Features
Specifications
Spindle Speed:: ≤8r/min
Displacement Distance Of The Right Shaft Head:: ≥40
Overall Speed Ratio:: 173.75
Motor:: Power 0.75KW
Rotational Speed:: 1500 R/min
Mandrel Diameter:: Φ1.25-Φ19.00mm
External Dimensions:: 810mm×400mm × 1400mm
Highlight:

wire winding test device

,

cable adhesion tester

,

GB4909.7-85 compliant tester
Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Model Number: CF8407
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T, Cash.L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5 units per month
Product Description

The wire winding and adhesion test device complies with the GB4909.7-85 standard "Test Methods for Bare Wires - Winding Test"
Check the occasion.
Requirements for wire winding and adhesion test device winding test:
Sample diameter: Aluminum wire Φ1.25-Φ6.00mm, steel wire Φ1.25-Φ3.80mm
Mandrel diameter: Φ1.25-Φ19.00mm
Spindle speed: ≤8r/min
4. Displacement distance of the right shaft head: ≥40
Overall speed ratio: 173.75
Motor: Power 0.75KW
Rotational speed: 1500 r/min
External dimensions: 810mm×400mm × 1400mm
Coating adhesion test: One 250ml glass graduated cylinder, one 3x magnifying glass and one 7x magnifying glass
