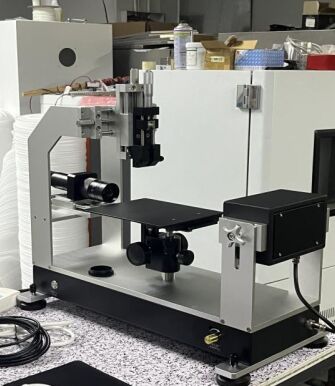

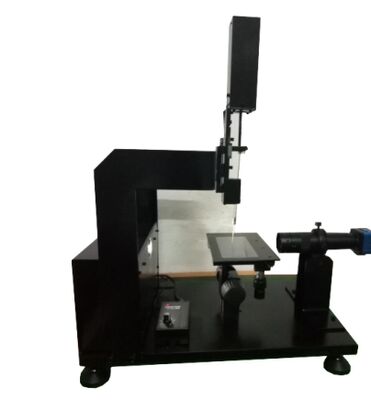

Composite Insulator Hydrophobicity Tester applicable to the hydrophobicity testing of RTV spray materials for magnetic insulators

1 Set
MOQ
US$2000-$30000
Price
Composite Insulator Hydrophobicity Tester  applicable to the hydrophobicity testing of RTV spray materials for magnetic insulators
Features Gallery Product Description Chat Now
Features
Specifications
Maximum Working Pressure: 2.5Mpa
Breakdown Voltage: 0-50kV
Press Needle Stroke: 2.5mm±0.045
Roller Hardness: HRC 50 ~ 60
Highlight:

composite insulator hydrophobicity tester

,

rubber testing equipment with drip system

,

hydrophobicity tester for composite insulators

Basic Infomation
Place of Origin: China
Brand Name: CHENGFENG
Certification: ISO,CE
Model Number: CF8436
Payment & Shipping Terms
Packaging Details: Wooden cases
Delivery Time: 10 Work Days
Payment Terms: T/T, Cash.L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5 units per month
Product Description

It's not online. KV doesn't matter. A better drip system costs 45,000.
I. Scope of Application
The composite insulator hydrophobicity live detection instrument is a new type of product for online detection of insulator hydrophobicity. It is suitable for on-line detection of the hydrophobicity of composite insulators on transmission lines of 110kV and above voltage levels, as well as for hydrophobicity testing experiments and factory inspection of various composite insulators and silicone rubber. It is also applicable to the hydrophobicity testing of RTV spray materials for magnetic insulators.
Ii. Detection Principle
The hydrophobicity state of composite insulators is judged in accordance with the water spray classification method of the Swedish Transmission Research Institute (STRI). Based on advanced digital image processing technology, the hydrophobicity state of composite insulators is objectively judged by extracting grayscale information such as information entropy, seed rate, and mean value of spectral amplitude of hydrophobic images, as well as shape coefficients and area percentages of water droplets or water traces.
Iii. Compliance with Standards
It complies with the test standard requirements of DL/T864-201 "Guidelines for the Use of Composite Insulators for AC Overhead Lines with Nominal Voltage Higher than 1000V".
Iv. Product Functions
1. Conduct live tests on the hydrophobicity of various composite insulators
2. Test the hydrophobicity of silicone rubber and RTV spray materials
3. Automatically and accurately analyze the hydrophobicity grade
4. Record all kinds of data and graphs from each test
5. The inspection records of each insulator and each string can be queried
6. Automatically determine the development trend of hydrophobicity
7. Analyze and judge the resistance to pollution flashover and moisture flashover
8. Provide scientific basis for maintenance and selection
V. Product Features
■ Adopt the water spray classification method (HC classification method)
■ Online detection, no power outage required
■ The device is compact, portable and convenient for fieldwork
Combine experience with scientific judgment
■ Simple operation and accurate judgment
■ High electrical safety performance
